Product Description:
Longitudinal travel of table: 160mm Cross travel of saddle: 80mm Rotary angle of wheel head: 360¢X Clearance angle: 0¢X~18¢X Point angle: 40¢X~180¢X Size of wheel: 180 x 25 x 31.75mm 80 x 6 x 31.75mm Speed of wheel: 3,600 RPM Motor: 3/4 HP, 220V/380V N.W./G.W.: 230kgs/250kgs Size of packing (L x W x H): 800 x 800 x 1,500mm
Product Description:
Longitudinal travel of table: 180mm Cross travel of saddle: 160mm Vertical adjustment of wheel head: 160mm Rotary angle of wheel head: 360¢X Clearance angle: 0¢X~18¢X Point angle: 40¢X~180¢X Size of wheel: 180 x 32 x 31.75mm 180 x 19 x 31.75mm Speed of wheel: 3,600 RPM Motor: 1/2 HP, 220V/380V N.W./G.W.: 280kgs/300kgs Size of packing (L x W x H): 950 x 1,000 x 1,530mm

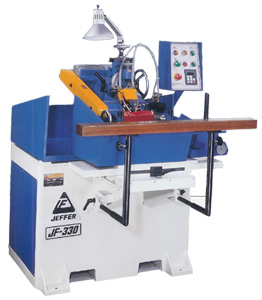

Product Description:
Work table back-front, left-right are moved with £p9,£p6mm linear bearing cross roller rail sets, accuracy +/- 0.005mm, grinding length is up to 250mm. Grinding wheel head is micro-adjustable and accurate, 3HP variable speed motor is powerful for grinding. Knife edge angle is adjusted by dovetail arc groove, grinding center is never changed no matter what the angle is. Easy and efficient to operate. Water splash guard and coolant tank are stainless steel.
