Home > Product Catalogs > NC Machine Tools > CNC Wire Cutting Machines


Select to : Select All | Clear All
Product Name: wire EDM
Company: Creator Precision Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
EDM
wire EDM
EDM wire
EDM machine
electrical discharge machine
High-Rigidity Structure
Precision Servo and Transmission System
Practical Solution for Termal Deformation
Product List     Company Profile

Select
Product Name: wire cut EDM
Company: Max See Industry Co., Ltd   [Taiwan]
Company Type: Manufacturer
Product Description:
Working Type

SW Series: Submerge Type

Max. work piece
mm
950 x 640 x 200

Max. work piece weight
kg
350

Table to floor
mm
900

Thread Type

Semi-auto

Z-Axis device

Automatic

X, Y Travel
mm
500 x 300

Z Travel
mm
200

U, V Travel
mm
80 x 80

Driver

Servo Motor

Positioning

X, Y, U, V, Z Linear scale

Table rapid feed
mm/min.
1200

Max. taper angle
¢X
+/-15 / 60mm (Periscopic nozzle)

Max. wire- feed
m/min.
15

Wire tension
g
200~2500

Max. thread roll weight
kg
5

Wire di
Product List     Company Profile

Select

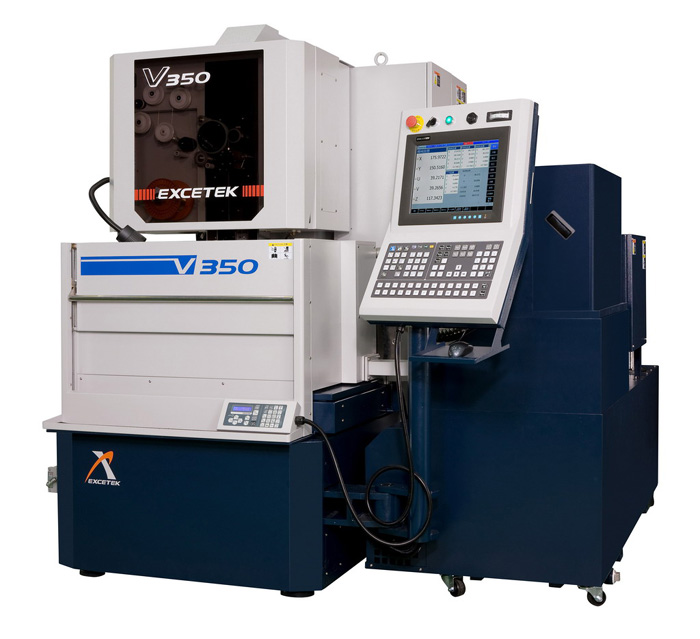

Product Name: wire cut EDM
Company: Excetek Technologies Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
SPECIFICATIONS
Submerged
Flushing

Model
V350
V35

Max. Work piece Size
700x500x215mm
(27.6"x19.7"x8.5")
800x600x215mm
(31.5"x23.6"x8.5")

Max. Work piece Weight
450kg
(992 lb)
500kg
(1102 lb)

Table Travel of XY
350x250mm
(13.8"x9.8")
350x250mm
(13.8"x9.8")

U&V Axis Travel
80x80mm
(3.1"x3.1")
80x80mm
(3.1"x3.1")

Z Axis Travel
220mm
(8.7")

Wire Diameter
0.15~0.3mm

Number of axes controlled
5 Axis AC Servo Motor

Maximum Taper Angle
¡Ó 26¢X/ 100mm
(Wide diamond guide and nozzle)

Machine Dimensions
2050x2050x1
Product List     Company Profile

Select
Product Name: wire cut EDM
Company: Iann Sheng Machinery & Electric Industrial Co., Ltd   [Taiwan]
Company Type: Manufacturer
Product Description:

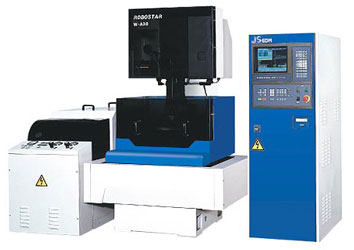

wire cut EDM W-A30
JSEDM WIRE CUT combines proven quality, reliability and performance
with superior control. This unit offers easy of use and convenience for the operator.
Product List     Company Profile

Select
Product Name: wire EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:

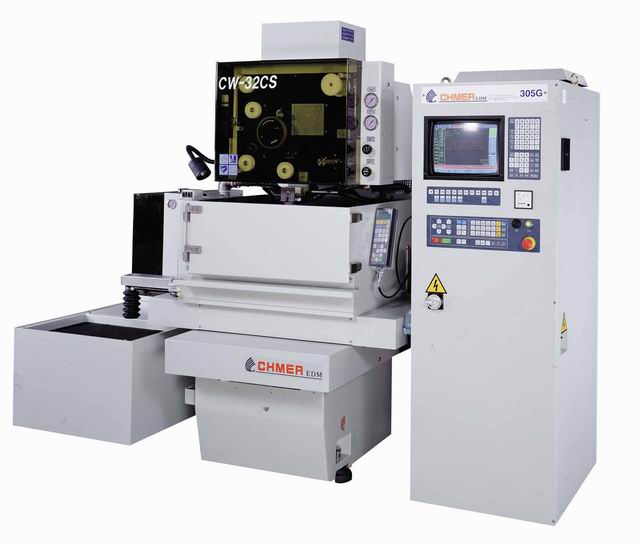

Model Unit CW-32CF/S
Axis travel (XxYxZ) mm 320x250x220
Auxiliary table travel (UxV) mm 60x60
Max. size of workpiece mm 800x560x220
Max. weigh of workpiece kg 300(F)/150(S)
XY feed rate mm Max. 800 mm/min
Axis drive system N/A AC servo motor
Max. wire feed rate mm 300/sec
Wire tension gf 400-2500
Taper angle mm ¡Ó20¢X/80mm(Wide angle taper nozzle)
Machine dimensions mm 1250x1500x2000
Machine Weight kg 2500
Product List     Company Profile

Select
Product Name: wire EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:

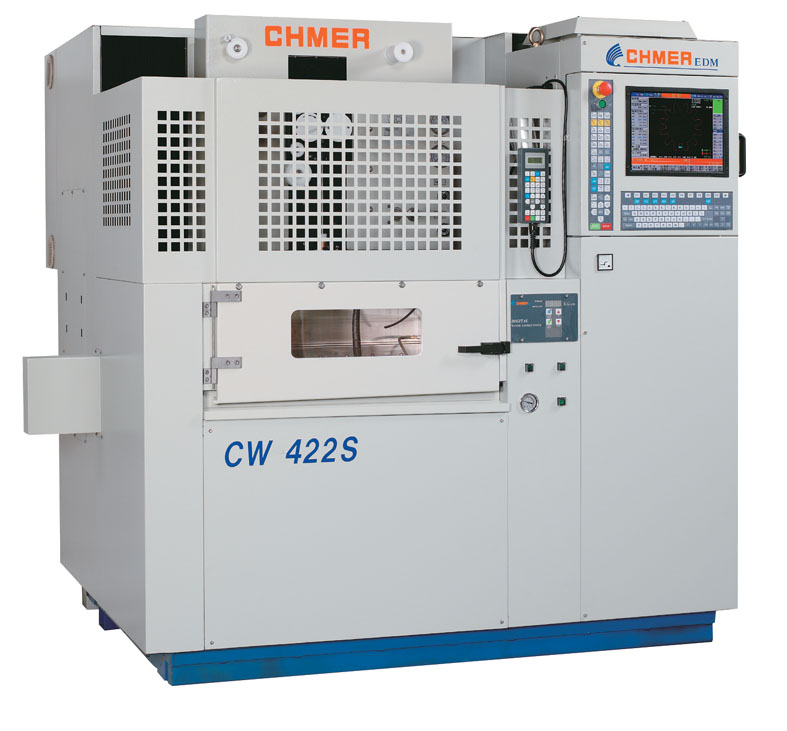

Model Unit CW-422F/S
Axis Travel (X¡ÑY¡ÑZ) mm/inch 400¡Ñ250¡Ñ220 / 15.7¡Ñ9.8¡Ñ8.6
Auxiliary Table Travel (U¡ÑV) mm/inch 60¡Ñ60 / 2.4¡Ñ2.4
Max. Size of Workpiece mm/inch 800¡Ñ560¡Ñ215 / 31.5¡Ñ22.0¡Ñ8.5
Max. Weight of Workpiece kg/lb 350/770(F) / 250/550(S)
XY Feed Rate - Max. 800 mm/min. / Max. 31.5"/.
Axis Drive System - AC servo motor
Wire Diameter Range - ¡í0.15~¡í0.3mm / ¡í0.006"~¡í0.012"
Max. Wire Feed Rate - 300mm/sec. / 11.8"/sec.
Wire Tension gf 400-2500
Taper Angle mm/inch ¡Ó14.5¢X/80mm / ¡Ó14.5¢X/3.15"
(Wide angle taper nozzle, DA+DB=15mm)
Machine Weight kg/lb 2050 / 4510

Product List     Company Profile

Select
Product Name: wire EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:

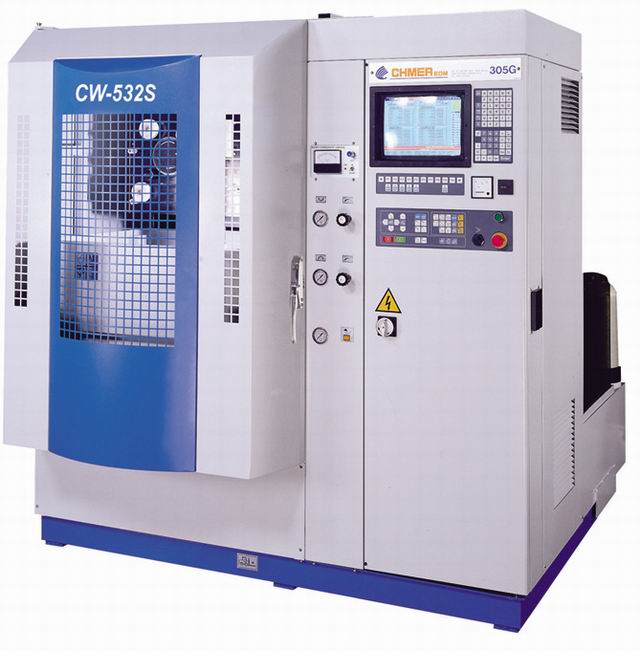

Model Unit CW-532F/S
Axis Travel (X¡ÑY¡ÑZ) mm/inch 500¡Ñ300¡Ñ220 / 19.7¡Ñ11.8¡Ñ8.6
Auxiliary Table Travel (U¡ÑV) mm/inch 60¡Ñ60 / 2.4¡Ñ2.4
Max. Size of Workpiece mm/inch 900¡Ñ600¡Ñ215 / 35.4¡Ñ23.6¡Ñ8.5
Max. Weight of Workpiece kg/lb 450/990(F) / 300/660(S)
XY Feed Rate - Max. 800 mm/min. / Max. 31.5"/.
Axis Drive System - AC servo motor
Wire Diameter Range - ¡í0.15~¡í0.3mm / ¡í0.006"~¡í0.012"
Max. Wire Feed Rate - 300mm/sec. / 11.8"/sec.
Wire Tension gf 400-2500
Taper Angle mm/inch ¡Ó14.5¢X/80mm / ¡Ó14.5¢X/3.15"
(Wide angle taper nozzle, DA+DB=15mm)
Machine Weight kg/lb 3000 / 6600
Product List     Company Profile

Select
Product Name: wire cut EDM
Company: Ard Precision Machinery Co., Ltd   [Taiwan]
Company Type: Manufacturer
Product Description:
5-axis 32-bit control, 4-axis X.Y.U.V. simultaneously.
4 axes optical scales, semi-auto wire feeding,... fine ground square table.
Most rigid construction, fixed table, column. movement.
Machining area is full enclosed. Motor Drive Z-axis.
Anti-electrolysis power for high cutting speed and fine surface finish.
Product List     Company Profile

Select
Product Name: wire-cut EDM
Company: Ecowin Corp   [Taiwan]
Company Type: Manufacturer
Product Description:
A self-developed CNC wire cut featuring high performance, maximum versatility and precision.
Self-designed control hardware and software for maximum operation convenience.
Effective functions permit for versatile applications for any skilled or unskilled operators.
Separated x,y-axis provide a balance for the load of motors and ensures high precision when performing surface finishing.
Rigid U, V-axis on the column maintains consistent accuracy under water pressure.
Proper cutting conditions are obtained automatically by simply entering wire diameter, workpiece materical and thickness
Product List     Company Profile

Select
Product Name: wire-cut EDM
Company: Ecowin Corp   [Taiwan]
Company Type: Manufacturer
Product Description:
A self-developed CNC wire cut featuring high performance, maximum versatility and precision.
Self-designed control hardware and software for maximum operation convenience.
Effective functions permit for versatile applications for any skilled or unskilled operators.
Separated x,y-axis provide a balance for the load of motors and ensures high precision when performing surface finishing.
Rigid U, V-axis on the column maintains consistent accuracy under water pressure.
Proper cutting conditions are obtained automatically by simply entering wire diameter, workpiece materical and thickness
Product List     Company Profile

Select
Product List:18 Select to : Select All | Clear All

Page:1/2 | 1 | 2 | Next >> Go To Page :
