Home > Product Catalogs > Machinery Parts and Elements > Tool Pots And Automatic Tool Changers for Machining Center


Select to : Select All | Clear All

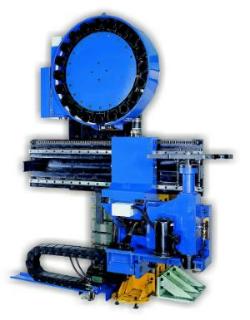

Product Name: ATC for vertical machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: BT40-16,20,24LV LINER TYPE
Power Supply of Magazine: Electric
Power Supply of ATC:
Tool to Tool Change Time: 5.0,6.3,7.5 sec
Max. Tool Weight: 6.5 kgs
Max. Tool Length: 300 mm
Max. Tool Dia.(All pockets full): 100,100,90ąP
Product List     Company Profile

Select
Product Name: ATC for vertical machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: CAT40-24CV
Power Supply of Magazine: Electric
Power Supply of ATC: Electric
Tool to Tool Change Time: 1.41 sec / 1.8 sec
Max. Tool Weight: 6.5 kgs and up
Max. Tool Length: 300 mm and up
Product List     Company Profile

Select
Product Name: ATC for vertical machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: Taper 50-40cv
Power Supply of Magazine: Hydraulic
Power Supply of ATC: Hydraulic
Tool to Tool Change Time: 5.5 sec
Max. Tool Weight: 25 kgs
Max. Tool Length: 350 mm
Max. Tool Dia.(All pockets full): 125mm
Product List     Company Profile

Select
Product Name: ATC for vertical machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: Five Axes CAT50-20DV
Power Supply of Magazine: Electric
Power Supply of ATC: Electric & Hydraulic
Tool to Tool Change Time: 16 sec
Max. Tool Weight: 15 kgs and up
Max. Tool Length: 350 mm and up
Max. Tool Dia.(All pockets full): 130 mm
Product List     Company Profile

Select
Product Name: ATC for vertical machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: ISO40-16DV
Power Supply of Magazine: Electric
Power Supply of ATC: Electric
Tool to Tool Change Time: 1.41 sec / 1.8 sec
Max. Tool Weight: 6.5 kgs and up
Max. Tool Length: 300 mm and up
Max. Tool Dia.(All pockets full): 100ąP
Product List     Company Profile

Select
Product Name: ATC for horizontal machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: BT40-30 DH
Power Supply of Magazine: Electric
Power Supply of ATC: Electric
Tool to Tool Change Time: 2.0 sec
Max. Tool Weight: 6.5 kgs and up
Max. Tool Length: 300 mm and up
Max. Tool Dia.(All pockets full): 80ąP
Product List     Company Profile

Select
Product Name: ATC for horizontal machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: HSK100-6DH
Power Supply of Magazine: Electric
Power Supply of ATC: Electric
Tool to Tool Change Time: 11 sec
Max. Tool Weight: 20 kgs
Max. Tool Length: 400 mm
Max. Tool Dia.(All pockets full): 250ąP
Product List     Company Profile

Select
Product Name: ATC for horizontal machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: ISO40-32,40CH
Power Supply of Magazine: Electric
Power Supply of ATC: Electric
Tool to Tool Change Time: 2.0 sec
Max. Tool Weight: 6.5 kgs and up
Max. Tool Length: 300 mm and up
Max. Tool Dia.(All pockets full): 76ąP
Product List     Company Profile

Select
Product Name: ATC for horizontal machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: CAT50-120CH
Power Supply of Magazine: Servo
Power Supply of ATC: Servo & Hydraulic
Tool to Tool Change Time: 3.5 sec
Max. Tool Weight: 20 kgs
Max. Tool Length: 400 mm and up
Max. Tool Dia.(All pockets full): 125mm
Product List     Company Profile

Select
Product Name: ATC for horizontal machining center
Company: Gifu Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model No.: HSK63A-16LH
Power Supply of Magazine: Servo Motor
Power Supply of ATC:
Tool to Tool Change Time: 0.75 sec
Max. Tool Weight: 12 kgs
Max. Tool Length: 400 mm
Max. Tool Dia.(All pockets full): 100mm
Product List     Company Profile

Select
Product List:14 Select to : Select All | Clear All

Page:1/2 | 1 | 2 | Next >> Go To Page :
