Home > Product Catalogs > Hydraulic and Pneumatic Components > Solenoid Valves, Hydraulic


Select to : Select All | Clear All
Product Name: solenoid valves
Company: Yuan Tain Feng Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Uses: Water, diesel oil, air.

Model
Brands
Caliber
Aperture
Operating pressure kg/cm2
Fluid temperature
Construction

orifice
Water, air
Oil

MD-15
QUEEN
1/2"
16mm
0~20
0~15
90¢J
Folding-action

MD-20
QUEEN
3/4"
23mm
0~20
0~15
90¢J
Folding-action

MD-25
QUEEN
1"
28mm
0~20
0~15
90¢J
Folding-action
Product List     Company Profile

Select
Product Name: safety valve (copper)
Company: Yuan Tain Feng Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
For fluids: steam, air, all kinds of gas and fuel oil and other liquidsApplied pressure: 1Kg/cm2G above, 20Kg/cm2G the following
Temperature Range: Up to 230 ¢J, the lowest -5 ¢J
Product List     Company Profile

Select
Product Name: safety valve
Company: Yuan Tain Feng Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
For fluids: steam, air, all kinds of gas and fuel oil and other liquidsApplied pressure: 0.35Kg/cm2G above, 10Kg/cm2G the following
Temperature Range: Up to 250 ¢J, the lowest -20 ¢J
Product List     Company Profile

Select

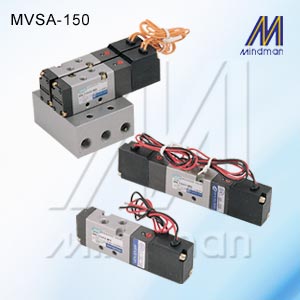

Product Name: MVSA solenoid valve
Company: Mindman Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Body width 15mm
Bore No. M5
Port size M5¡ÑP0.8
No. of port 5
No. of position 2
Medium Air
Operating pressure range 1.5~8 kgf/cm2
Proof pressure 10 kgf/cm2
Flow 169 Nl /min
Effective orifice 3.8 mm2
Response time 30 ms
Ambient temperature -5~+50¢XC (No freezing)
Voltage AC110V, 220V (50/60)Hz, DC24V
Power consumption AC=2.1/1.8VA, DC=1.6W
Available voltage range ¡Ó10%
Insulation class B class
Weight 76 g~115 g
Product List     Company Profile

Select

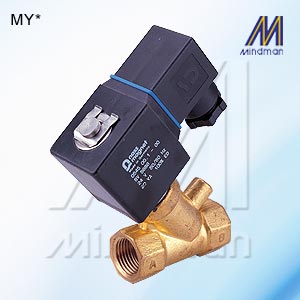

Product Name: solenoid valve
Company: Mindman Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Y type forged brass body
IP65 100% ED coil
PTB approval EExmIIT4 coil
Product List     Company Profile

Select

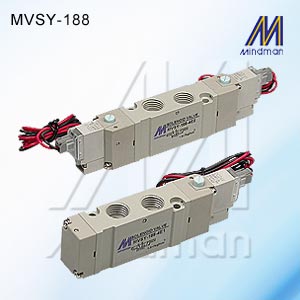

Product Name: MVSY solenoid valve
Company: Mindman Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Body width 18 mm
Bore No. 8A
Port size PT 1/4
No. of port 5
No. of position 2
Medium Air
Operating pressure range 1.5~7 kgf/cm2
Proof pressure 10 kgf/cm2
Flow 666 Nl /min
Effective orifice 15 mm2
Response time 15ms
Ambient temperature ¢w5~+50¢XC (No freezing)
Voltage AC110(50/60)Hz,DC6 / 12 / 24 V
Power consumption AC=1.6VA,DC=1.2W
Product List     Company Profile

Select
Product List:6 Select to : Select All | Clear All
