Home > Product Catalogs > Special Machine Tools > Spring Coil Winding Machines


Select to : Select All | Clear All

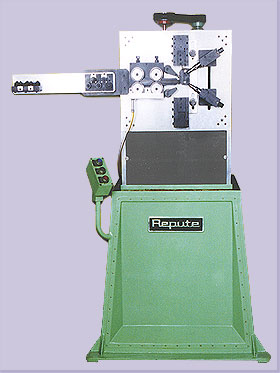

Product Name: fully automatic spring machine
Company: Repute Industries   [India]
Company Type: Manufacturer
Product Description:
This universal automatic spring Coiling Machine is for the fully automatic production of left or right hand coiled springs of the compression or tension type, with closed end coils, cylindrical tapered or double tapered and other shaped spring. The wire is inserted to the feed rolls through the straightening unit. Pressure on the wire is adjusted by manual screwing of individual feed rolls. The R.P.M. of the feed rolls can be set through gear box. Gear box can be provided of manual changing type or of Norton type. An inching arrangement is provided for easy setting of the machine during cut o
Product List     Company Profile

Select

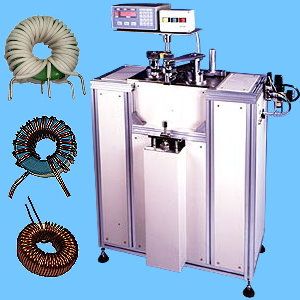

Product Name: toroidal coil winder
Company: Shining Sun Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
FUNCTION:
1. Semi - automatic hook winder.
2. Able to set - up the winding pitch.
3. Able to set - up the winding turns.
4. Able to set - up the direction of forward or reverse winding.
Product List     Company Profile

Select

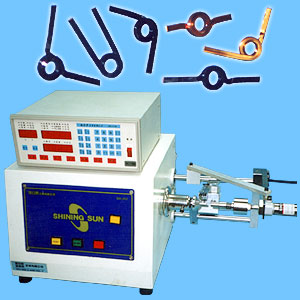

Product Name: flat wire winding machine
Company: Shining Sun Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
POWER: 110V / 220V 50 / 60 HZ
MOTOR: DC 100W
TRAVERSE MOTOR : SANYO STEPPING MOTOR DC 9V
WIRE SIZE: THICKNESS 0.1 ~ 1.0 m/m
R.P.M. 200 r.p.m.
WEIGHT: 62 Kg
DIMENSION: 720(W)*780(L)*400(H)mm

FUNCTION:
SPECIAL WINDER FOR FLAT MAGNET WIRE
Product List     Company Profile

Select
Product Name: CNC Large Torsion Winding Machine
Company: Shining Sun Enterprise Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
POWER: AC 220V 50 / 60 HZ
MAIN MOTOR: DC90 / 180V
SPREAD: DC9V
PITCH: 0.001 - 9.999mm
MEMORY: 999 Step
WIRE SIZE: ?0.1 - ?3mm
R.P.M. 300
SPREAD RANGE: 0-100mm
WINDING DIA.: 200 mm
WEIGHT: 57 Kgs
DIMENSION: 420(W)*330(L)*420(H)mm
550(W)*750(L)*420(H)mm
Product List     Company Profile

Select

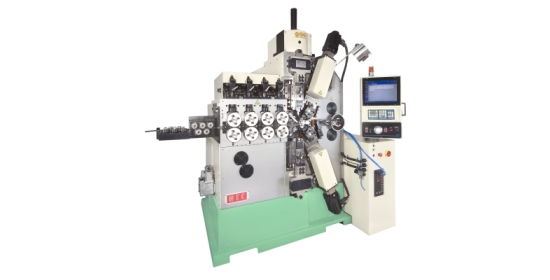

Product Name: CNC 7 axes spring coiling machine
Company: Huei Shang Industrial Co.,Ltd. (HSI)   [Taiwan]
Company Type: Manufacturer
Product Description:
7 Servo Motors, computer controlled.
Camless operation insures fast and easy setup.
Mandrel in/out movement is programmable.
Advanced design coiling point system insures easy conversion from right hand to left hand coiling.
Rotating cutoff or straight cutoff capability are both standard features.
Standard spring shapes are pre-programmed for easy setup.
Product List     Company Profile

Select

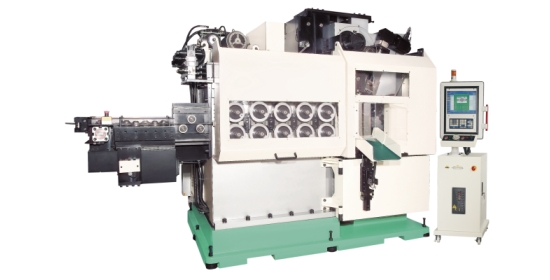

Product Name: CNC 9 axes spring coiling machine
Company: Huei Shang Industrial Co.,Ltd. (HSI)   [Taiwan]
Company Type: Manufacturer
Product Description:
9 Servo Motors, computer controlled.
Complete camless operation insures easy setup.
When O.D. is changed, cutter, pitch tool, and mandrel will move to the correct position automatically, according to the part program.
Hydraulically controlled adjustable feed roller pressure.
Mandrel in/out movement is programmable.
Rotating cutoff or straight cutoff capability are both standard features.
Standard spring shapes are pre-programmed for easy setup.
Product List     Company Profile

Select
Product Name: automatic spring coiling machine
Company: Chin Yn Chang Machinery Co.,Ltd   [Taiwan]
Company Type: Manufacturer
Product Description:
It can make any kinds of spring.
Product List     Company Profile

Select
Product Name: automatic spring coiling machine
Company: Chin Yn Chang Machinery Co.,Ltd   [Taiwan]
Company Type: Manufacturer
Product Description:
It can make spring in any kinds and shape.
Product List     Company Profile

Select

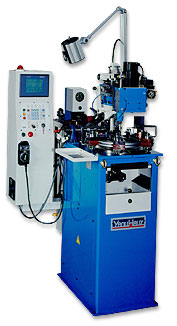

Product Name: air coil former
Company: Yeou Heuy Machine Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Wire diameter (Steel wire) 0.15~0.8mm
Max. length of front leg 50 mm
Max. length of rear leg 50 mm
Max. length of wire feed 100 mm
Spindle Axis Y Axis
Max. spindle vertical Stroke 40mm
Min. value 0.1 ¢X
Max. value 359.9 ¢X
Max. coils 999 Coil
Working direction Clockwise/Anticlockwise
Home action Unlimited
Cam axis X Axis
Min. value 0.1 ¢X
Max. value 359.9 ¢X
Max. production speed 120 RPM
Power 220V 3p 50/60Hz
Pneumatic air pressure 4-5 kg/cm2
Machine gross weight 350 kg
Machine dimension 1420x900x1800 mm
Product List     Company Profile

Select
Product List:9 Select to : Select All | Clear All

Page:1/1 | 1 | Go To Page :
