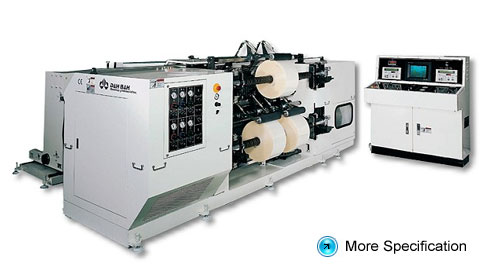

Product Description:
This series of slitting machine is suitable for copper foil slitting of high grade thin films, such as cellophanes, plastic films and aluninum foils. The series offers precision slitting of 20-5 mm material. Specially designed rollers provide lengthwise and cross accuracy.Simplified construction ensures minimum trouble. High speed optional accessories are available for more convenient and versatile operations.

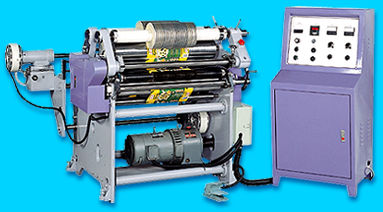

Product Description:
The unwind and rewind are on the same side which saves space and is more conveniently operated. Coreless unwind. Differential resistance rewind shaft. Rewind unrevolving. Human Machine Interface control. Razor and shear cutter. Machine speed of 300 M/min. Create superior design and engineering. Especially excellent for slitting composite films and various other materials.
Product Description:
Machine Speed: 250m/min It is ideal for slitting plastic films, laminates and paper material. Vacuum drum keeps the material stable during operation. Apply for Europe-made AC Vector motor (one master motor and two rewind motors) with stable performance; Rewind running direction could be chose. PLC / Color touch screen (MMI) for faster parameter setting and fault diagnosis in addition. Auto tension control system on both of unwinding and rewinding.
Product Description:
High Speed Drive The maximum speed of 400 meters / minute. Each made machine is equipped with automatic. Tension control for the unwind and rewind. A two motor drive system for tension isolation between the unwind and rewind is via a driven plasma coated vacuum hug drum. The drive system feature indeed pendent tension selection to each rewind shaft regardless of web speed.
