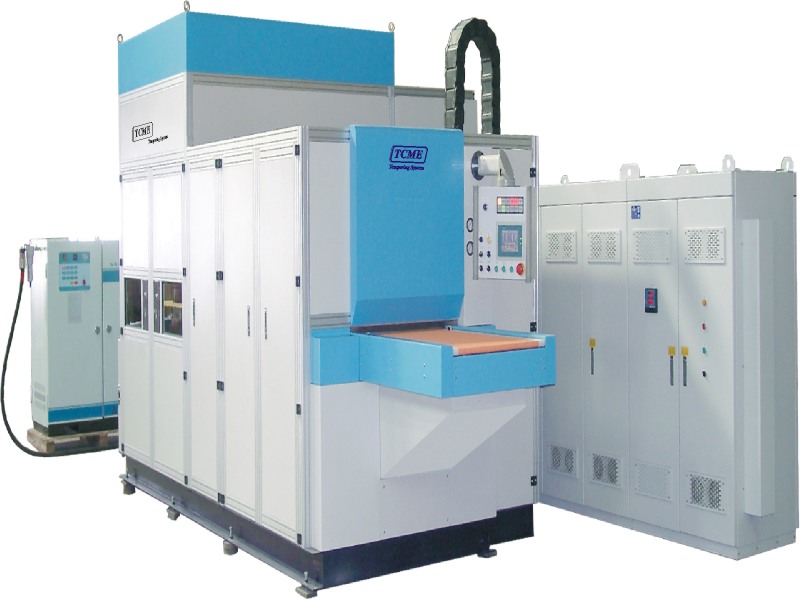

Product Description:
Auto temperature and power heating adjustments. Microprocessor-based program with self-timer scanning & recording system. Touch screen control system , easy to understand and operate. Automatic , half-automatic and manual control are available. Oven is easily lifted overhead for roller maintenance.

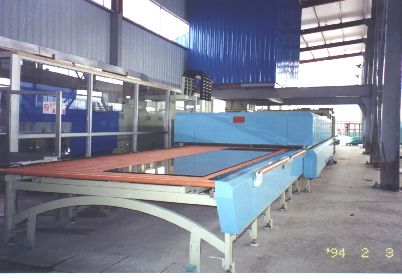

Product Description:
Outer dimension: 5930 mm (L) X 2000 mm (W) X 2500 mm (H) Overall dimension: 9000 mm (L) X 4000 mm (W) Max. Size of glass: 600 mm X 1000 mm Min. Size of glass: 50 mm X 50 mm or 65 mm Glass thickness: 2.8 mm ~ 19 mm Heating power: 58 KW Blower: 112.5 KW Air compressor: 7.5 KW Total power: 180 KW

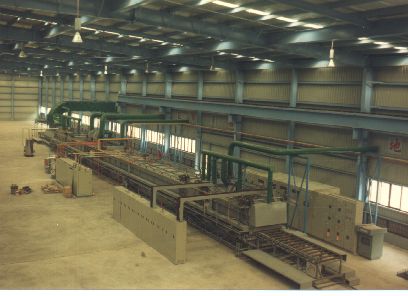

Product Description:
Model Number : TCF - 55L Maximum Temperature : 850 deg. C. Normal Temperature : 760 deg. C. heating Element : KANTHAL AF wire Roller Material : Refractory alloy tube Refractory Material : Ceramics fiber , ceramics board and YK132 refractory brick . Temperature Control : Microprocessor based with CRT monitor controlled in 24 zones Temperature Distribution : + - 5 deg. C. Temperature Accuracy : Full scale + - 0.3% Heat - up Time : Approx . 2 hours up to 760 deg. C. Speed Control : Within 0-300 mm/min-variable speed Speed Accuracy : + - 0.2% Heater Capacity : 480 KW Hea

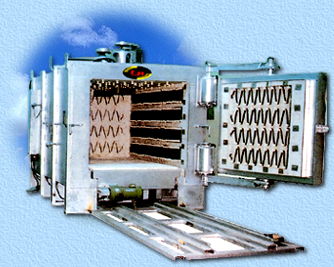

Product Description:
Designing and manufacturing variou size as custom's reguirement. Temperature rising and lowering quickly good temperature equality. Temperature in miniature box-type furnace may reach up to 1000oC, for heat treatmen of small amount of product on.

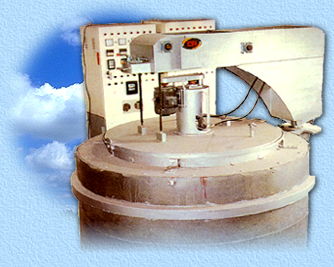

Product Description:
Convection system of special design makes temperature in furnace very even. Using ceramic fiber for lagging material, insulation efficiency excellent, weight light and temperature rising very quick. Forced temperature decrease design is available, which save output time, increase production and reduce cost in business. Excellent sealing ability, protection atmospere may be inject into it.

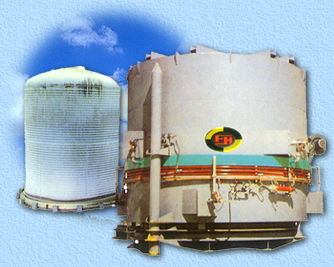

Product Description:
Usage It is suited for annealing or spheroidizing of wire rod, plate band of carbon steel and steel alloy. It is appropriate for annealing or instant treatment of non-ferrous material.
Features: High sealing ability, furnace atmosphere to be controlled easily and can be used for treatment of carbon restoration. Special design of convection system insures temperature in furnace very even. Temperature nising quickly, reduces the openation cost.
