Product Description:

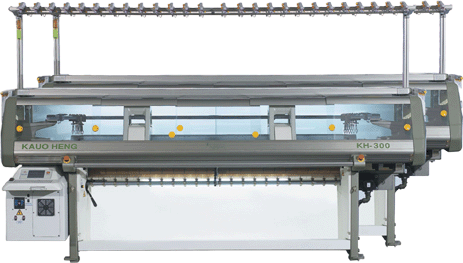

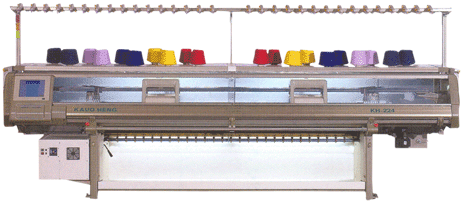

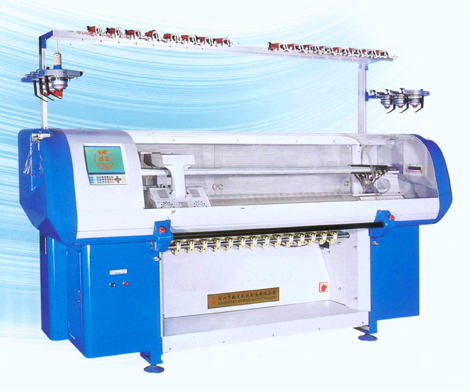

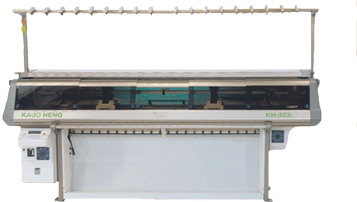

computer flat knitting machine is mainly applied in weaving woolen sweaters, DK jacquard and other accessories.It owns two cam systems,adopts special 8-position electromagnetic needle selector to make efficient and random needle selection of three working positions,which plays an important role in improving weaving speed(head running speed
Product Description:
KNITTING SPEED Max. 1.2m/sec. Knitting speed varies according to gauge, yarn and knitting condition. YARN CARRIERS 12 yarn carriers on 3 double rails. NEEDLE SELECTION Full jacquard selection via special solenoids. TRANSFER Simultaneous transfer, front or back, independent of carriage direction.Split knitting. NEEDLE BED Replaceable segment needle bed. SINKER SYSTEM Moveable sinker equipment. STITCH DENSITY 30 Ievels independent selection, electronic control with stepping motor 00-200 steps. RACKING Racked by servo motor and high precision ball screw system. Racking 1/2
Product Description:

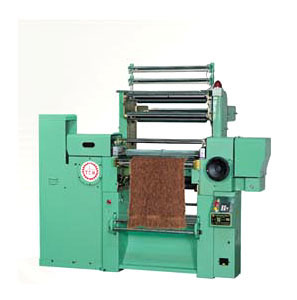

Suitable for producing fancy knitted fabrics. Capable of using various fancy yarns. Flat bed knitting allows fabric panel knit faster & flat. Weft bar help in using various fancy yarns for designing. Guages available-15,18, & 20. Auto lubrication for quite & smooth running. Long chain device help for design pattern
repeat larger.
Design pattern capabiuty can be increased as per customer choice. Suitable for producing fancy knitted fabrics. Capable of using various fancy yarns. Flat bed knitting allows fabric panel knit faster & flat. Weft bar help in us
Product Description:
Model: JL-303 Gauge: 7, 8, 10, 12, 14 and 16 Bed width: 40"(101cm), 52"(132cm), 68"(172cm) Carriage speed: 100-120 cm/sec Knitting width: Can be setted freely Yarn feeder: Single feeder Cam driving: Solenoid driving Stitch density: 0-99 stepping motor Yarn Color: 6 colors both side change Racking 1/2 P x 1 seetion, 1P x 5 section Rahben: H-needle tuck, L-needle tuck, all needle tuck Needles used: High and low butt Take down: Automatic auxiliary roller moves with fabric take-down Data input: Direct input from keyboard, memory by I/C card Driving: 1/2HP, 3 phase, AC m
Product Description:
STITCH DENSITY:Electronic control with stepping motor 00-99 levels. RACKING: 6 levels to left or to right. FABRIC TAKE DOWN:Compound main roller, torque motor control, two separate speeds adjustable each. FLUORESCENT LAMP:Inside of safety cover and fabric take down. POWER: 220V, 1/2HP motor. CONTROL SYSTEM: Computer control LCD display.
