Product Description:
Professional producing all kinds of thermoplastic raw material, foaming or non-foaming, such as: TR, TPU and etc for soles injection to product high quality goods. The mold base rotary 0¢X, 90¢X, and 180¢X, permitting all different color isolation to achieving excellent color separation. The barrel temperature control with 4-stage P.I.D, ensuring constant temperature and high quality product. Employs specially designed individual mutiple mold station, wakes the machine suit for mass production. Movable injection unit combined with intelligent automatic mold-station, greatly saves energy wast
Product Description:
Professional producing all kinds of thermoplastic raw material, foaming or non-foaming, such as: TR, TPU and etc for soles injection to product high quality goods. The mold base rotary 0¢X, 90¢X, and 180¢X, permitting all different color isolation to achieving excellent color separation. The barrel temperature control with 4-stage P.I.D, ensuring constant temperature and high quality product. Employs specially designed individual mutiple mold station, wakes the machine suit for mass production. Movable injection unit combined with intelligent automatic mold-station, greatly saves energy wast
Product Description:
Higher mold clamping force by equipping with bigger piston which leads finished products good effects of burrs-free. With Door-safety design and mechanical safety device for security after mold opening to protect operators. Upper-mold holder designed with 0¢X 90¢X 180¢X three angles rotation. lower-mold holder with ejecting device and slider makes efficient operation. Upper and lower mold holders with excellent design of water cooling circulation system. Injection volume controlled by high precise linear ruler system. Provides 5 injection pressure adjusting function for great quality pr
Product Description:

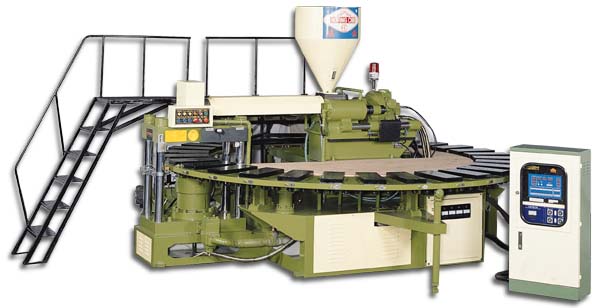

This machine is suitable for all kinds of thermoplastic raw materials, foaming of non-foaming, such as T.P.U. P.V.C. T.P.R. etc for soles, injecting. Full automatic computer control system, need no skillful operator, can save lots of labors and time. Low noise, low revolving speed & high torque hydraulic motor to drive feeding shaft with stepless speed. The machines capacity for general shoes is 220 pairs/hour. Constructed of 30 mold stations for great mold loading capacity and mold variation. Also cooling time is increased. Employs proportional pressure control, The injection pressure
Product Description:
SPECIFICATIONS : Auto thermo controller set 4x2 Injection stroke mm 220 Max. injection pressure kg/cm 537 Max. injection volume cm3 972 Productivity pcs/hr 120-200 Clamping force TON 62 Space for mould max mm 220 Machine dimension M 4.9x3.6x2.5 Machine weight ton 8
