Product Description:
The belt filter press is a continuous-feed dewatering device that applies chemical conditioning, gravity draining, and mechanical pressure to dewater sludge. The sludge/slurry is sandwiched between tensioned belts and rolls, by passing those belts through a serpentine of decreasing diameter rolls to remove the moistures and then dispose of the sludge cake. The compressed sludge is reversed several times to be pressed by low?medium and high pressures between two belts, and passively dewatered by squeezing of the rolls. Purpose:
Liquid/solids separation through pressure filtration. Featu
Product Description:
Sand filter provides the removal of solids/particles suspended in the liquid by passing through a filter bed comprised of a granular or filter medium with the functions of sediment, straining, impacting, coherence, and adhesion. The raw wastewater is fed and distributed through an inlet partition, and the solids/particles are retained while flowing through the filter medium bed. The filtered water is collected in the underdrain system, which is also used to re-suspend and backwash the filter medium at the end of filtration run to remove the solids/particle wastes. It is ideal and efficient for
Product Description:
The chain type auto bar screen is set in the shallow channel with the installation angel of 60 degree approximately. Chain-driven reciprocating racks are used to remove the debris and solids intercepted by the bar screens. Purpose:
Remove coarse material in the water by screen interception to protect the pipes and pumps from tearing and wearing. Features:
Frame body is made of stainless steel of SUS304. Bar screen opening can be design by the customers on demand. Equip with safety device for stop to prevent from overloading or abnormal situation. Applications:

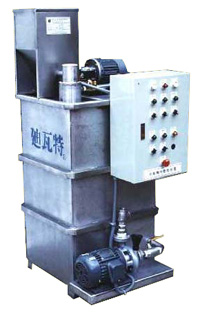

Product Description:
The powder make-up unit mixes up the chemical/ polymer powder and water spirally in the pre-mixing device, by a constant dosing of powder into liquid to make-up a precise concentration of solution. The single-stage dissolver can achieve the purpose of chemical/polymer mixing and aging in one unit to eliminate pumping. The matured chemical solution is then transferred to additional storage tank for demand.
Features: Dual auto and manual switch operation modes. Batch operation to prevent the faults of shortage and unstable flow rate. "NO TOUCH" design of the mixer to prevent clogging
Product Description:
The belt filter press is a continuous-feed dewatering device that applies chemical conditioning, gravity draining, and mechanical pressure to dewater sludge. The sludge/slurry is sandwiched between tensioned belts and rolls, by passing those belts through a serpentine of decreasing diameter rolls to remove the moistures and then dispose of the sludge cake. Purpose:
Liquid/solids separation through pressure filtration. Features:
Single belt design: Single filter belt circulation is suitable for a small quantity application. Low capital and O/M costs: Simple structures, less breakd
Product Description:
The powder make-up unit mixes up the chemical/ polymer powder and water spirally in the pre-mixing device, by a constant dosing of powder into liquid to make-up a precise concentration of solution. The powder dissolution is completed in a sequence of reactors with continuous mixing, aging, store and reserve by gravity flow.
Features: Automatic PLC control. Auto-adjusted dosing rate to compensate unstable flow-rate. "NO TOUCH" design of the mixer to prevent clogging. PP or stainless steel reactor on demand. Three individual reactors of mixing, aging, and storage.

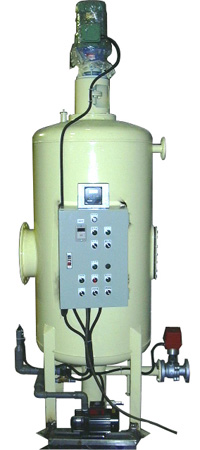

Product Description:
The filtration is achieved while the raw water is feed-in to the device and up-flowed through the floating filter media. The debris and particles are retained, condensed, blocked, captured and filtrated through the filter run. An agitator in the filter tank is operated to stir the filter media layer for backwashing. Features:
High-tech polyethylene resin filter media with uniform factor over 90 and density less than 0.06. Custom designed high efficiency up-flow filter medial. Durable filter media with lifetime of several years, and minimum abrasion and fragments. Backwash is achiev
Product Description:
In the plate filter press, dewatering is accomplished by forcing the water from the sludge under high pressure. The sludge is pumped into the filter press chambers and the filtrate is pressed through the filter clothes as pumping pressure increases. The dewatered sludge is retained inside the press chambers and moved as the sludge cake after a press run. Purpose:
Liquid/solids separation through pressure filtration. Features:
Mobile and integrated modular design. No chemical additives/polymer needed. The pressed sludge cake is collected by conveyors and transported to the dedic
Product Description:
Cone screen is designed to remove suspended solids from a high solids loading slurry/sludge. The raw wastewater/sludge/slurry is fed from the center inlet and solids separation is achieved by rotating the cylindrical cone screen. Thickened sludge rolls out the end of the cone, while decanted supernatant flows through the screens. Features:
The wedge-wired screen enhances the filtration and avoids clogging. Screen openings varied from 0.5 ~ 3.0mm are available. Low power consumption. Light weighted and compact footprint makes it easy for installation. Applications:
