Centary Faith Industrial Ltd.

Product :

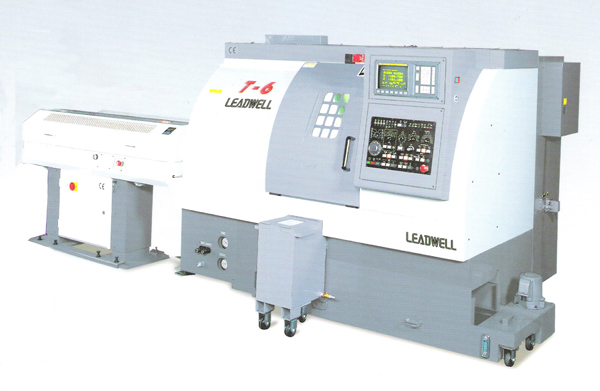

	Product Name:CNC turning center

Product Description:

T-6
Capacity
Max swing mm(in) 450(17.7)
Max turning diameter mm(in) 210(8.3)
Max turning length mm(in) 420(16.5)
Bar capacity mm(in) 51(2)
Trevel
X axis mm(in) 105+20(4.9)
Z axis mm(in) 460(18.1)
Spindle
Spindle speeds range rpm 4500
Chuck size in 6
Type of Spindle nose A2-5
Spindle motor power KW(HP) 11(15)
Turret
Number of tool stations 12
Shank height for square tool mm(in) 20(0.78)
Shank diameter for boring bar mm(in) 32(1.25)
Rotary tool spindle speed range: axis units rpm -
Rotary tool spindle speed range: rad units rpm -
Rotary tool motor power KW -
Feedrate
X,Z-axis rapid traverse m(in)/min 20,24(787,945)
Feed motors
X axis motor KW(HP) 1.2(1.6)
Z axis motor KW(HP) 1.2(1.6)
Tailstock
Quill diameter mm(in) 75(3)
Quill inside taper M.T 4
Miscellanceous
Total machine weight kg 3750
Machine dimensions mm(in) 2340(92.1)
Machine dimensions mm(in) 1580(62.2)
Machine dimensions mm(in) 1595(62.8)
Power requirement KVA 25

Contact Information:

Company Name:	Centary Faith Industrial Ltd.
Contact Person:	----------
Address:	No. 122, Fu Hsing 2nd Rd., Kwei Shang , Tao Yuan Hsien, Taiwan.
E-Mail:
Telephone:	886-3-3274395
Mobile:	------------
Fax:	886-3-3274396
Web Site:	www.centaryfaith.com
