Centary Faith Industrial Ltd.

Product :

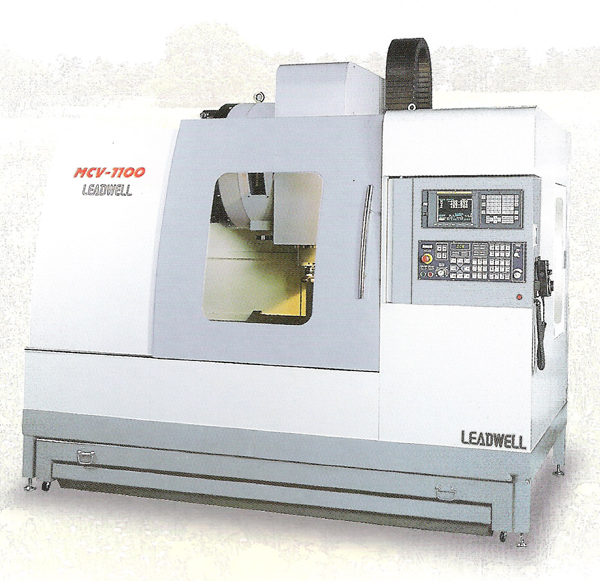

	Product Name:vertical machining center

Product Description:

MCV-1100
Capacity ¡@ ¡@
X-axis travel mm(in) 1100(43.4)
Y-axis travel mm(in) 610(24)
Z-axis travel mm(in) 610(24)
Distance from table top to spindle end mm(in) 120-730(4.7-28.7)
spindle center to column mm(in) 660(26)
Table(pallet) ¡@ ¡@
Working surface (height * width) mm(in) 1300x600(51.18x23.6)
Permissible mass of workpiece kg(lb) 1000(2204)
Spindle ¡@ ¡@
Spindle speeds rpm 8000
Spindle nose (normal size, NO.) ¡@ No40/No50
Feedrate ¡@ ¡@
Rapid traverse XY/Z m/min(IPM) 15/15(591/591)
Max. cutting m/min(IPM) 10(394)
A.T.C ¡@ ARM Type
Tool storage capacity ¡@ 24
Max. tool diameter (with adjacent tools) mm(in) 90(3.54)
Max. tool length mm(in) 250(9.8)
ATC time T/T sec 3.5
ATC time C/C sec 7
Motors ¡@ ¡@
Spindle motor kw(HP) 11(15)
X,Y,Z-axis feed motors kw 2.1/2.1/2.1
Machine size ¡@ ¡@
Height of machine mm(in) 2685(105.7)
Floor space mm(in) 3000x2280(118x89.8)
Total machine weight kg(lb) 7000(15400)
Power requirement KVA 25
