Ching Hung Machinery & Electric Industrial Co., Ltd.

Product :

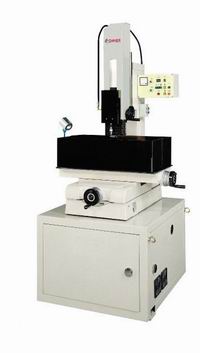

	Product Name:CNC drill EDM

Product Description:

Model Unit CMH32A
Max. workpiece size(W¡ÑD¡ÑH) mm/inch 800¡Ñ450¡Ñ400 / 31.4¡Ñ17.7¡Ñ15.7
Max. workpiece weight kgs/lbs 100 / 220.4
Table travel(X,Y) mm/inch 350¡Ñ250 / 13.8¡Ñ9.8
Ram travel(Z1) mm/inch 340 / 13.3
Ram travel(Z2) mm/inch 200 / 7.9
Machine head movement mm/inch 150 / 5.9
Electrode pipe Diameter mm/inch ¡í0.2~¡í6.0(one unit/0.1)
Max. electrode pipe length mm/inch 400 / 15.7
Distance from table to bottom of guide mm/inch 5-400 / 0.2-15.7
Fluid capacity - 25 liter ¡Ñ2
Dielectric - Water
Outside dimensions(W¡ÑD¡ÑH) mm/inch 1380¡Ñ1110¡Ñ2360 / 54.3¡Ñ43.7¡Ñ92.9

Contact Information:

Company Name:	Ching Hung Machinery & Electric Industrial Co., Ltd.
Contact Person:	Mr. Wang
Address:	No.28, Lane 229,Sec.1, Jhongshan Rd, Wurih Township, Taichung County 414, Taiwan
E-Mail:
Telephone:	886-4-23509188
Mobile:	------------
Fax:	886-4-23500977
Web Site:	www.chmer.com
