Gentiger Machinery Industrial Co., Ltd.

Product :

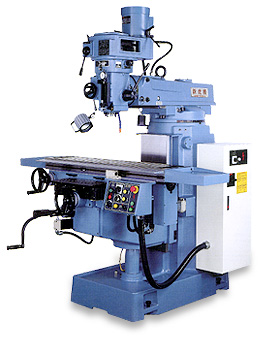

	Product Name:vertical milling maching

Product Description:

Ruggedly built turret type milling head.
The spindle is one piece machined from SCM-21 alloy steel, carburized, tempered and precision ground. The spindle runs on high precision P4 class bearings.
Fitted with forced lubrication system for gears, clutch, and bearings inside the milling head for low noise running and long service life of head parts.
The milling head can be swivelled 45¢X to the right and left. It is quickly locked and loosened by double screws and clamping ring.
Constructed of high quality castings FC-30 and FCD-45, rib reinforced, tempered, and stress relieved for maximum rigidity without deformation.
The tale is manufactured from high quality cast iron FC-30. The table surface and slideways are tempered, high frequency hardened, and precision ground. The T-slots are precision machined. The 6 surfaces on 3 T-slots are precision ground to within 0.01mm accuracy in full way, permitting for fast milling operations.

Contact Information:

Company Name:	Gentiger Machinery Industrial Co., Ltd.
Contact Person:	Mr. Li
Address:	No.558 shen chou Rd., shen Kang Hsiang, Taichung Hsien, Taiwan.
E-Mail:
Telephone:	886-4-25206018
Mobile:	------------
Fax:	886-4-25225195
Web Site:	www.gentiger.com.tw
