Joemars Industrial Automation Co., Ltd.

Product :

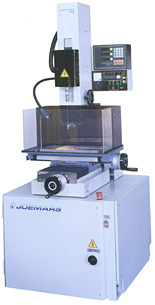

	Product Name:super drill EDM

Product Description:

Worktable size 460x210mm 600x300mm
X Y travel 330x200mm 350x250mm
Z Ram servo travel 345mm 345mm
W axis ----- 200mm
Guide travel 150mm 150mm
Max workpiece weight 100kgs 450kgs
Electrode size 0.3mm-3.0mm 0.3mm-3.0mm
Max electrode length 400mm 400mm
Ram platen to worktable 100-250mm 5-355mm
Machining dielectric Distilled water Distilled water
Capacity of dielectric 20Lx2 20Lx2
Machine weight 620kgs 900kgs
Machine imension 865x1465x2070mm 1020x1545x2070mm

Contact Information:

Company Name:	Joemars Industrial Automation Co., Ltd.
Contact Person:	Mr. Chen
Address:	No.66, Lane 124, Sec.1, Youyuan RD., Tatu Hsiang, Taichung Hsien, Taiwan , R.O.C.432
E-Mail:
Telephone:	886-4-26917566
Mobile:	------------
Fax:	886-4-26917555
Web Site:	www.joemars.com.tw
