| Maike Industrial Co., Ltd. |
|
| |
| |
|
| |
| |
 |
|

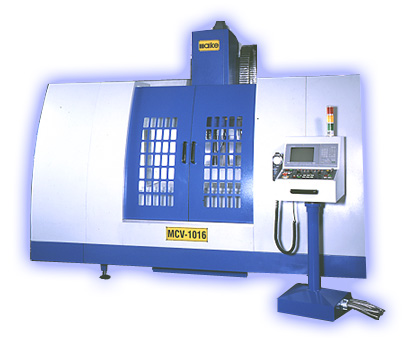

Base and saddle used box type construct design,
long lasting accuracy even under heavy cutting,
high speed machinery operations.
All of the female sideways and gibs are covered
with turcite B and the slideways heat tream,
granding keep this accuracy and harden.
Automatic centraliged lubrication system is filled to
give ever slideway, long time operate could keep
accuracy.
Positioning accuracy: +- 0.008/300mm Repeatabillity
: +- 0.005mm
The bigger diameter spindle cartridge type is strictly
balanced and supported by ultra precision, angular
contact bearings and double row roller bearings,
this allows for vibration free vigidity giving supers
finsih.
The ballscrews with optimum pre-load and
pre-tension are averaged at the center of each
guideway and close to cutting point to attain precise
positioning without yawing.
|
|
|
|
|
| |
|
|
| |
| |
 |
|
