Pinnacle Machine Tool Co., Ltd.

Product :

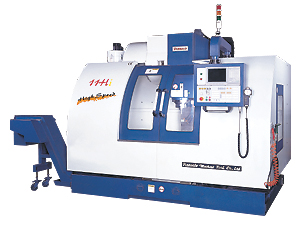

	Product Name:vertical machining center

Product Description:

Motor Spindle 15,000 RPM (Grease), 20,000 RPM (Air Oil).
45mm width linear guide ways on three axes to ensure high accuracy and rigidity under 36/36/24 M/min rapid speed.
High efficiency, specially-designed motor assures maximum stability for all speeds and torques. It provides unmatched cutting speed than conventional spindles especially when cutting CBN, PCD and ceramic materials.
X, Y axis hollow ball screws are oil cooled. Effectively reduces thermal strain while assuring superior machining quality.
3 axes equipped with 40mm diameter
C3 class high precision ball screws with double nuts. Mounted P4 class ball screw support bearings ensure high positioning accuracy and durability.
3 axes ball screws are pre-tensioned
before assembly to avoid deformation that may effect machining accuracy. Cutting feed rate is up to 12,000mm per minute.

Contact Information:

Company Name:	Pinnacle Machine Tool Co., Ltd.
Contact Person:	Ms. Xie
Address:	No.25, Lane 51, An Ho Road, Tan Tzu Hsiang, Taichung Hsien, Taiwan.
E-Mail:
Telephone:	886-4-25252995
Mobile:	------------
Fax:	886-4-25252991
Web Site:	www.pinnacle-mc.com
