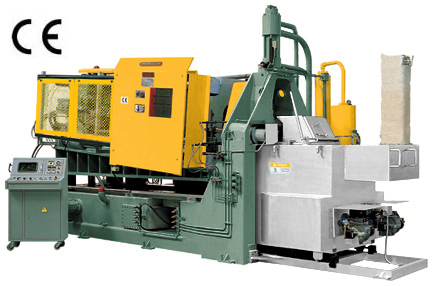

Product Name:hot chamber magnesium die casting machines
Product Description:
Tie bar diameter mm 130x6 Die platen size(HxV) mm 950x950 Between tie bars(HxV) mm 600x600 Max. Die stroke mm 420 Die height mm 300~700 Nozzle break stroke mm 300 Max. Injection force ton 18.5 Max. Injection stroke mm 250 Standard plunger tip dia. mm 90 Total net injection amount(Mg) gr 1735 Melting pot capacity(Mg) kg 490
