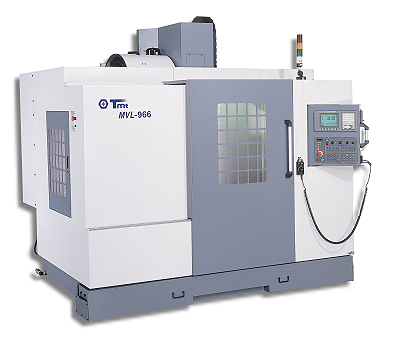

The structural parts of the machine are manufactured from durable,high quality cast iron and tempered for stress relief.This assures lifetime accuracy.
The Y-axis on the base is equipped with two linear ways with an 850mm.span between linear ways. it provides a solid support with superior stability and rigidity,making the machine excellent for precision parts and mold machining.
The counter-balance weight is equipped with a guide rail,which provides a firm support when the spindle head is performing cutting or travelling up or down.The design Solves poor machining problems due to spindle head vibration and assures high machining accuracy.
The extra heavy column is "¤H"shape construction with a span for increased rigidity and stsbility.it is firmly fastened to the massive and stsble base to assure high accuracy maching.
The saddle and table are double-box type construction for reducing machining vibration to a minimum and maximizing accuracy. |
|
|
|
|
| |
|
|
| |
| |
 |
|
