Chiao Wei Mechanic Co., Ltd

Product :

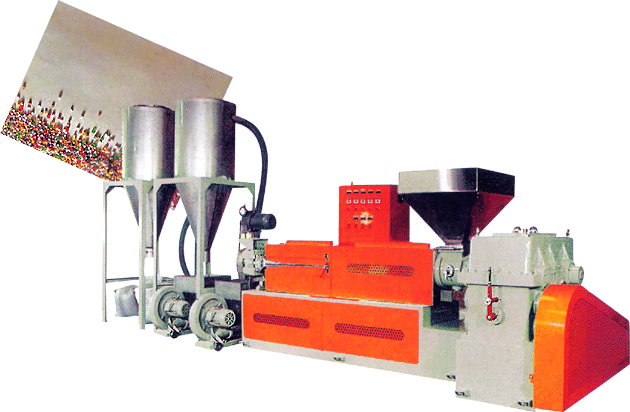

	Product Name:PVC plastic pellet making machine

Product Description:

Model CW-100P CW-120P CW-150P
Extruding capacity 90-160kgs/hf 150-250kgs/hf 150-250kgs/hf
Screw dia. 100mm 120mm 150mm
L/D ratio 22:1
Driving power 40HP 50HP 75HP
Heating capacity 16KW 20KW 32KW
Temp controlling zone 5point 6point 7point
Cyl. cooling style 4sets 4sets 4sets
Pellet cutting power 1HP 1HP 2HP
Auto loader power 2HP 3HP 5HP
Storage tank size ?770x3.5mm ?770x3.5mm ?970x3.5mm
Machine weight 4800kgs 6300kgs 8500kgs
Occupied floor space 7x2.3x3.6m 8x2.3x3.6m 10x2.3x3.6m

Contact Information:

Company Name:	Chiao Wei Mechanic Co., Ltd
Contact Person:	Zhang Su Zhao
Address:	NO. 17, LANE 232, KUAN KUANG RD., LUNG CHING, TAICHUNG, TAIWAN
E-Mail:
Telephone:	886-4-26302845
Mobile:	------------
Fax:	886-4-26302846
Web Site:	www.highspeed-mixer.com.tw
