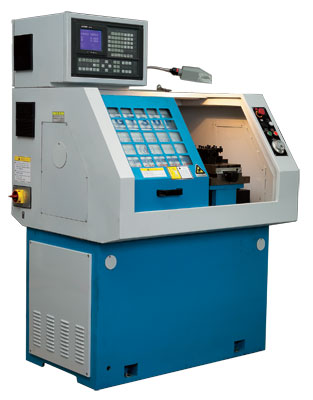

The spindle is supported by high-accuracy rolling bearing; The frequency governor imported from abroad is used in the main drive system to realize stepless speed regulation and constant linear cutting functions; The bed is supersonic frequeney hardened, plastic coated guide ways are used for the carriage; and stepping motor of Acservo motor are used X and Z axis to realize feed movement via the ball screws.
Such modular function as the high-static pressure spindle box, spring collet chcks of various sizes as well sw more than twenty kinds of front back, left and right tool rests for extrnal cutting, tool post for boing and drilling are available for users to select.
Specification
1. Max. swing over bed (mm)300
2. Max. swing over carrige(mm)100
3. Max. turning length. (mm)200
4. Speed range (Stepless) (r/min)Standard: 150~3000 Option: 150~4000
5. Dia. of spindle bore (mm)32
6. Spindle bore taper (MT)No. 5
7. Feed rate rang of of X. Z axis (mm/min) X: 4000 Z: 8000
8. Thread pitch (mm/inch) 4mm / 6inch
9. Travel of X. Z (mm) X: 270 Z: 250
10. Powerof spindle motor (Kw)3Kw
11. Speed of spindle motor (r/min)1480
12. Turret (mm) Comb-shaped or square tool post
13. Cross section size of cutter hoider(hxb) (mm)16x16
14. Min. increment of X-axis (mm)0. 001
15. Min. increment of Z-axis (mm)0. 001
16. Overall dimension(L*W*H) (mm)1350*1050*1720
17. Machine weight (Kg)1250/1350
18. CNC system GSK 980TD |
|
|
|
|
| |
|
|
| |
| |
 |
|
