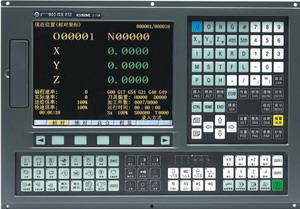

Matched with machining center and general milling machine,employed with 32-bit high performance CPU and super-large-scale programmable device FPGA, real-time control and hardware interpolation technology to ensure the system gets the high efficiency with the ¦Ìm-level precision, and its PLC can be edit on-line, which makes the logic control function become more flexible and strong.
£±£®The standard configuration of system is 4-axis 3 link, and the rotation axis can be set by parameters;
£²£®The max. positioning speed can reach 30m/min, and the max. interpolation speed can reach 15m/min;
£³£®Linear, exponential and S acceleration/deceleration is optional;
£´£®Bidirectional pitch error compensation, backlash error compensation, tool length and tool radius compensation are available;
£µ£®Convenient management for the system with multilevel operation password;
£¶£®The Chinese and English interface can be selected by setting the related parameter;
£·£®The system has 56M program memory capacity to store up to 400 programs and has the back stage edit function and can edit the program on the background,
£¸£®The system has the standard RS232 and USB interface which can realize the bidirectional transmission of programs, parameters and PLC programs between CNC and PC;
9. The system has DNC control and its baud rate can be set;
10£®Its built-in PLC can realize the various of logic control functions; its ladder can be edit , uploaded and downloaded on-line; |
|
|
|
|
| |
|
|
| |
| |
 |
|
