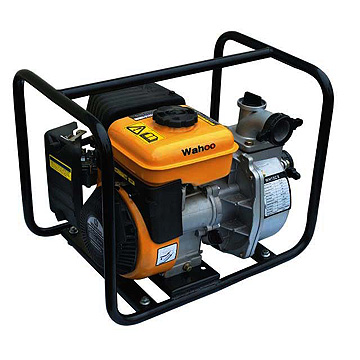

| Zhejiang Wanhao Machine Science and Technology Co Ltd |
|
| |
| |
|
| |
| |
 |
|
Inlet and outlet size: 40mm (1.5")
Rated speed (HP/rpm): 3600rpm
Displacement: 36m 3 /h
Pump lift: 26m
Suction height: 7m
Engine model: WG90
Displacement (ml): 87ml
Engine max output (HP/rpm):) 2.6/3600
Fuel volume: 1.6L
Bore x stroke: 54 x38
Compression ratio: 8.5:1
Oil volume: 0.37L
Min fuel consumption (g/kW.h):450
Air cleaner model: semi-dry, oil bath, dual, silent, cyclone
Ignition model: transistor magneto
Start mode: recoil
NW/GW (kg): 26/28
Package dimensions (mm): 480x345x400 |
|
|
|
|
| |
|
|
| |
| |
 |
|
