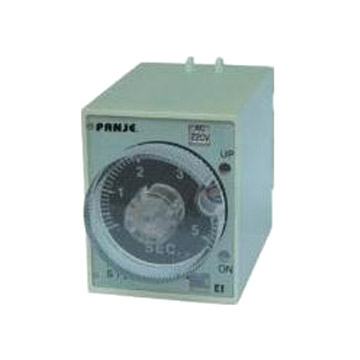

Wenzhou Liuchuan Relays Co., Ltd |
|
|
|
|
|
|
|
|
1) Voltage: AC 24V - 220V 50Hz / DC 24V - 110V 2) Contact: a) ST3A: timed 2PDT b) ST3PC: timed SPDT c) Inst. SPDT ST3PF: timed SPDT 3) Operation: a) ST3A: on delay b) ST3PC: on-delay with inst. contact c) ST3PF: off-delay 4) Timing range: a) 0.05-0.5s / 5s / 30s / 3min b) 0.1-1s / 10s / 60s / 6min c) 0.5-5s / 50s / 5min / 30min d) 1-10s / 100s / 10min / 60min e) 5-60s / 10min / 60min / 6h f) 0.25-2min / 20min / 2h / 12h g) 0.5-4min / 40min / 4h / 24h h) 1s, 5s, 10s, 30s, 60s |
|
|
|
|
|
|
|
|
|
|
|
