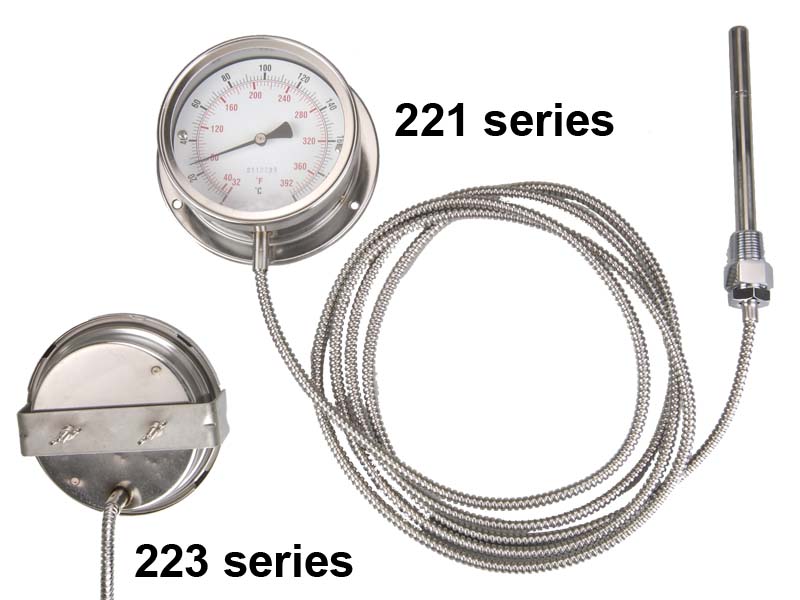

Used for all types of industrial applications. All stainless steel material is suitable for corrosive media and environments in chemical process, petroleum and food industry.
Mounting: Wall mounting Type ; panel mounting type Dial diameter: 3" ; 4" ; 6" Case: Stainless steel 304 case, IP65 Lens: Glass lens Dial: Aluminum Pointer: Aluminum, black Measuring principle: Mercury expansion system standard Gas expansion system available ( Particularly for food industry) Capillary: Standard 3 meters length, stainless steel 304 Other length available by order, max. 20 meters length Connection: Male swivel nut 1/2¡¨PF with removable male thread 1/2¡¨PT or 3/4¡¨PT Stem: Stainless steel 304 or 316 Stem Length: 6" standard, other sizes available by order Stem Diameter: 12mm standard¡F6.35mm, 8mm, 9.5mm available Accuracy: +/-1% F.S. Ranges: From -50 to +600 deg.C available Optional extras: Thermowell ; Electrical contacts
|
|
|
|
|
|
|
|
|
|
|
|
