Iron Flower Machinery Inc.

Product :

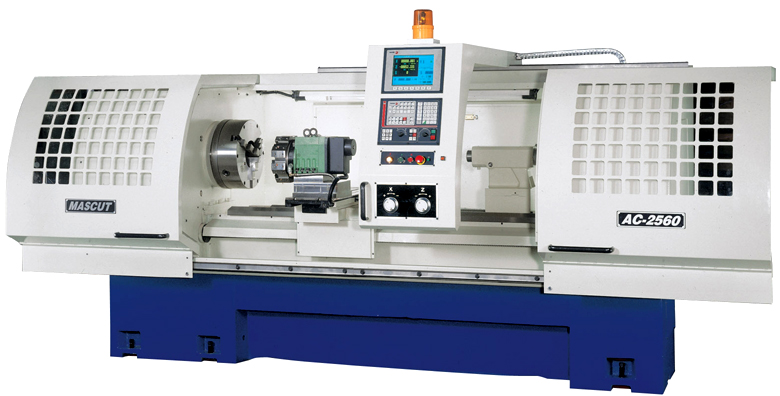

	Product Name:flate-bed cnc lathe

Product Description:

FAGOR Control is standard, but ANILAM, FANUC & SIEMENS Control is available on request.
Spindle auto speed shifting (3 steps) and CNC controlling.
All casting are made of high tensile Meehanite cast iron which are annealed treatment to eliminate internal residual stress.
Wide bed and box constructed, bed ways are high frequency heat treated, precision ground etc., to provide stability at high speed running or deep cut.
Spindle & gear are made of CR-MO alloy steel which are carburizing & precisely ground, forced lubricating & oil bathed combined in headstock which can be prolonged servicing life.
Three point support on the spindle with two taper roller bearings and one roller bearing to assure the accuracy & rigidity.
AC-2500 spindle bore 85mm series with hi-spindle speed 2250rpm.
Gap bed on request.
High precision ball screw.
CSS available.
Heavy duty tailstock
V-8 turret tool post on request
Electric 4-Way tool post on request
External spindle cooling system on request
Double chuck system ( over 105 mm spindle bore ) on request
Tailstock spindle dia. 75 mm

Contact Information:

Company Name:	Iron Flower Machinery Inc.
Contact Person:	Julia Huang
Address:	NO. 98-11, Chin Kuang Rd., Wujih Hsiang 414, Taichung Hsien, Taiwan, R.O.C.
E-Mail:
Telephone:	886-4-23354433
Mobile:	------------
Fax:	886-4-23354350
Web Site:	www.mascut.com
