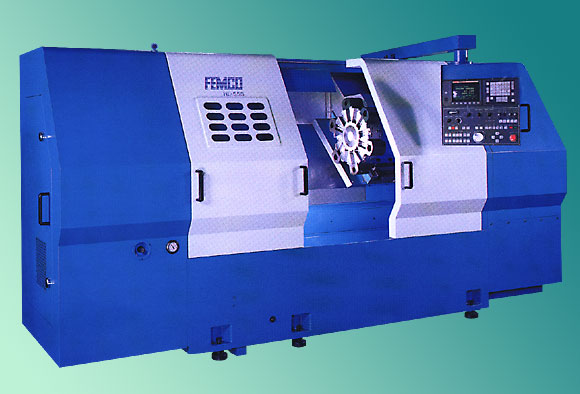

ITEM UNIT HL-55S
Working Capacity Max.turning length mm 650/1150
Main Spindle Spindle nose rpm 2500
Spindle nose / Hole through spindle diameter - A2-8/A2-11
Spindle motor direct drive inches 12"
Rated continuously/30 min HP(KW) 22.5/30(30/40)
Turret Stotage capacity - 8/12
Turret clamping force lb 26000
X-axis Travel mm 288
Rapid traverse rate m/min 12
AC servo motor HP(KW) 2.8(2.1)
Z-axis Travel mm 700/1250
Rapid traverse rate m/min 16
AC servo motor HP(KW) 5.1(3.8)
Tailstock Tailstock travel mm 560/955
Quill travel mm 120
Quill taper - MT #5
thrust
N 11780
Outside dimensions WxDxH mm 4600/5200X2020X2100
Machine weight kg(lbs) 7500(16500)/8500(18700)
|
|
|
|
|
| |
|
|
| |
| |
 |
|
