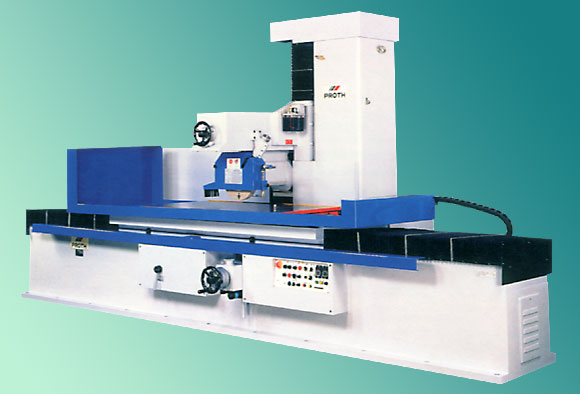

MODEL PSGO-75150AHR
Max.cross * longitudinal travels 810x1650mm
Spindle center height from tablle 700(950)mm
Grinding surface of table 750x1500mm
Hydraulic table speed(60Hz) 1-25m/min
Intermittent cross feed (Electro-Mechanical) approx 0.1-15(0.1-30)mm/feed
Continuous cross feed (Electro-Mechanical) approx 1500(50-1500)mm/min
1 revolution on cross handwheel 5mm
1 division on cross handwheel 0.02mm
Rapid vertical traverse (approx)(50Hz) 240mm/min
1 revolution on vertical handwheel 0.25mm
1 division on vertical handwheel 0.002mm
Wheel dimension (O.D*W*1.D) 355x38x127(500x50x200)mm
Spindle power 7.5(11)kW/10(15)HP
Wheel speedt 50/60Hz 1500/1800r.p.m.(1000/1200r.p.m.)
Net weight of machine 11000kg
Gross weight of machine 12300kg
Packing dimension (L*W*H) 5.5x2.25x2.85m |
|
|
|
|
| |
|
|
| |
| |
 |
|
