Shanghai Communications Technologies Center

Product :

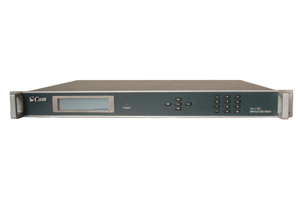

	Product Name:SV-130 MPEG-2 Decoder (4:2:2)

Product Description:

SV-130 is SCom innovated professional grade MPEG-2 digital video decoder. Offering alterable interfaces, SV-130 series are able to receive MPEG2 TS streaming from DVB ASI/SPI interface, IP network and output decoded signals via analog video/audio ports, digital ASI, SDI/AES ports, with local and network operation modes.

Main Features

Audio/Video Decoding
*Support a variety of interfaces
*Support ISO13818-1 TS demultiplexing (up to 32PID)
*Support ISO13818-2 (Main Profile @ Main Level and 422 Profile @ Main Level) video decoding
*Support ISO11172-3 and ISO13818-3 audio decoding, provide simultaneous 2 pairs of stereo (4 channels) decoding
*Support graphic display up to 16 bits/pel (OSD)
*LCD/OSD real time display of measured MPEG2 streaming information
*Test result and the device status can be displayed through SNMP MIB
*Support the visit to SV-130 to get the test information from personal PC via web browser
*English/Chinese Menu display
*Execute control by panel keys and network interfaces
*Configure and check working status over the network
*Configure and control the decoder by the network interfaces
*Communication protocol and remote control software package for third-party networking and application development
*Upgrade software version via serial port/network

Contact Information:

Company Name:	Shanghai Communications Technologies Center
Contact Person:	Rona Xu
Address:	No.15 Gui Qing Road
E-Mail:
Telephone:	0086-21-64952951
Mobile:	------------
Fax:	0086-21-64957191
Web Site:	www.scomcenter.com
