GODSWILL MACHINERY CO., LTD. |
|
|
|
|
|
|
|
|

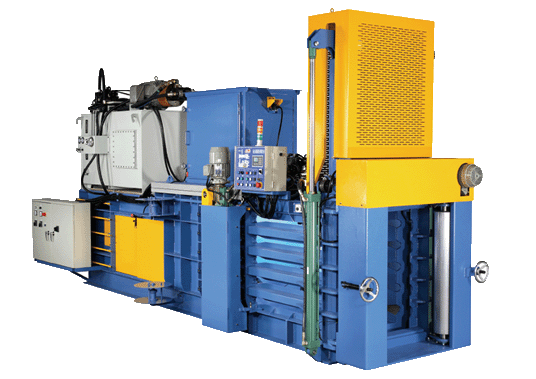

GBP-7511 Close-End Automatic Baling Press
TYPE GBP-7511C Horsepower 40 HP 80 HP 30 K.W 60 K.W Feed Opening Dimensions (mm) 1100 ¡Ñ 660 Bale Chamber (mm) 710 ¡Ñ 1050 ¡Ñ 1400 Bale Dimensions (mm) 750 ¡Ñ 1100 ¡Ñ 1300 Bale Density 300~450 (kg/) Max.Thrust Force 80 Ton Production (40~60 kg/ ) 1.5~3 TPH 3~5 TPH Number of Ties 5 Oil Reservoir 1200L Machine Weight 11 Ton 12 Ton
|
|
|
|
|
|
|
|
|
|
|
|
