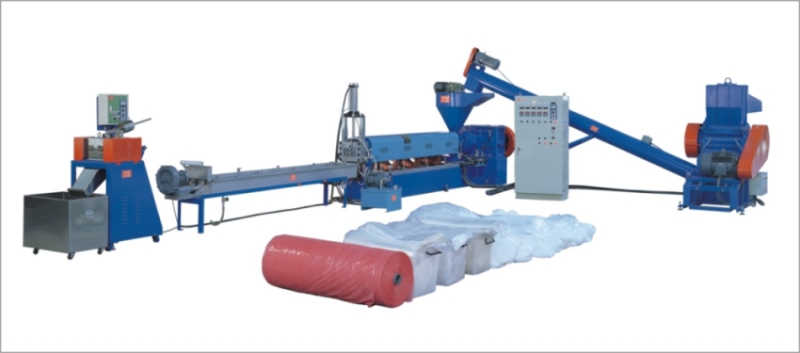

STRAND (SPHAGETTI) TYPE
MODEL GSR-45 GSR-65 GSR-85 GSR-100 GSR-120 GSR-150
FEATURE MATERIAL TO BE USED HD/LD/LLDPE, PP WASTE FILM (CHECK WITH US FOR OTHER MATERIAL)
MAX. EXTRUSION OUTPUT 48 KG/HR 80 KG/HR 120 KG/HR 190KG/ HR 240 KG/HR 320 KG/HR
EXTRUDER CYLINDER TYPE VENT TYPE
SCREW DIAMETER 65/45 mm 65 mm 85 mm 100 mm 120 mm 150 mm
SCREW L/D RATIO 28 : 1 32 : 1
DRIVIVING MOTOR 15 HP 25 HP 40 HP 60 HP 75 HP 100 HP
SPIRAL FEEDING UNIT 1 SET, DRIVER BT A.C. MOTOR WITH REDUCER
SCREEN CHANGER MECHNICAL DESIGN HYPRAULIC TYPE
BLOWN FILM DIES 1 SET
CONTROL
PANEL TYPE INDEPENDENT TYPE SWITCH BOARD
TEMPERATURE CONTROL 4 ZONES 4 ZONES 5 ZONES 5 ZONES 6 ZONES 7 POINTS
COOLING
UNIT TYPE CIRCULATING WATER COOLING TYPE
WATER TANK 1 SET, MADE OF STAINLESS STELL
AIR BLOWER 1 SET
PULL &
CUTTING
UNIT TAKE-UP MOTOR 2 HP 3 HP 3 HP 5 HP 5 HP 7.5 HP
CUTTING UNIT ROTARY KNIFE WITH FIXED BLADE
KNIFE MATERIAL SKH-2 or SKD-11
OPTIONS POWERFUL CRUSHER, SCREW CONVEYOR, AIR BLOWER WITH CYCLONE,
PRESSURE GAUGE, MANUAL SCREEN CHANGER, HYDRAULIC SCREEN CHANGER,
DEGASSING UNIT WITH VACUUM PUMP, 2ND EXTRUDER, VIBRATING SCREEN,
STORAGE TANK... ETC.
REMARK MACHINES FOR THE FOLLOWING APPLICATIONS ARE ALSO AVAILABLE ON YOUR REQUEST:
- FOR RECYCLING OF INJECTION (HEAD) PIECES.
- FOR RECYCLING OF PET BOTTLES.
- FOR MAKING MASTERBATH
- FOR MIXING OF PLASTIC PELLETS
|
|
|
|
|
| |
|
|
| |
| |
 |
|
