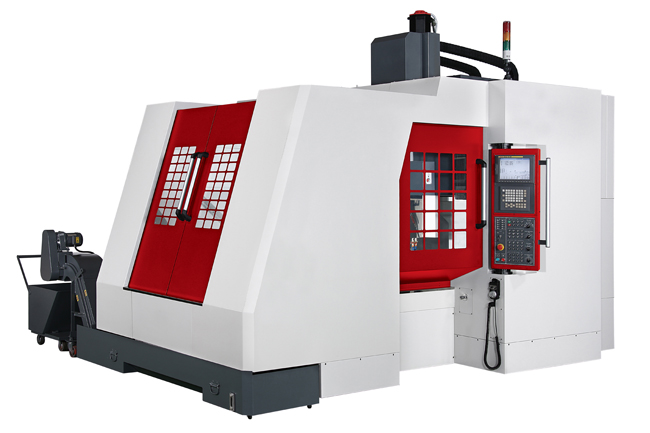

Product Name:double column vertical machining center
Product Description:
table Work Table mm 600x600 1,100x750 1,600x750 T-Slots (W¡ÑNo.) mm 14x4(P=100) 22x6(P=100) 22x6(P=100) Max. Table Load kg 500 1,000 1,500 Column Span mm 647 850 850 TRAVEL X Axis mm 600 1,100 1,600 Y Axis mm 600 750 750 Z Axis mm 350 500 500 Spindle Nose to Table Surface mm 150~500 150-650 150-650
Contact Information:
Company Name:
Hong Long Sing Technology Co.,Ltd.
Contact Person:
Lin De Rong
Address:
NO.221,Lane 460,Sec.1,Sinan Rd.,Wurih Township Taichung County 41262,TAIWAN
