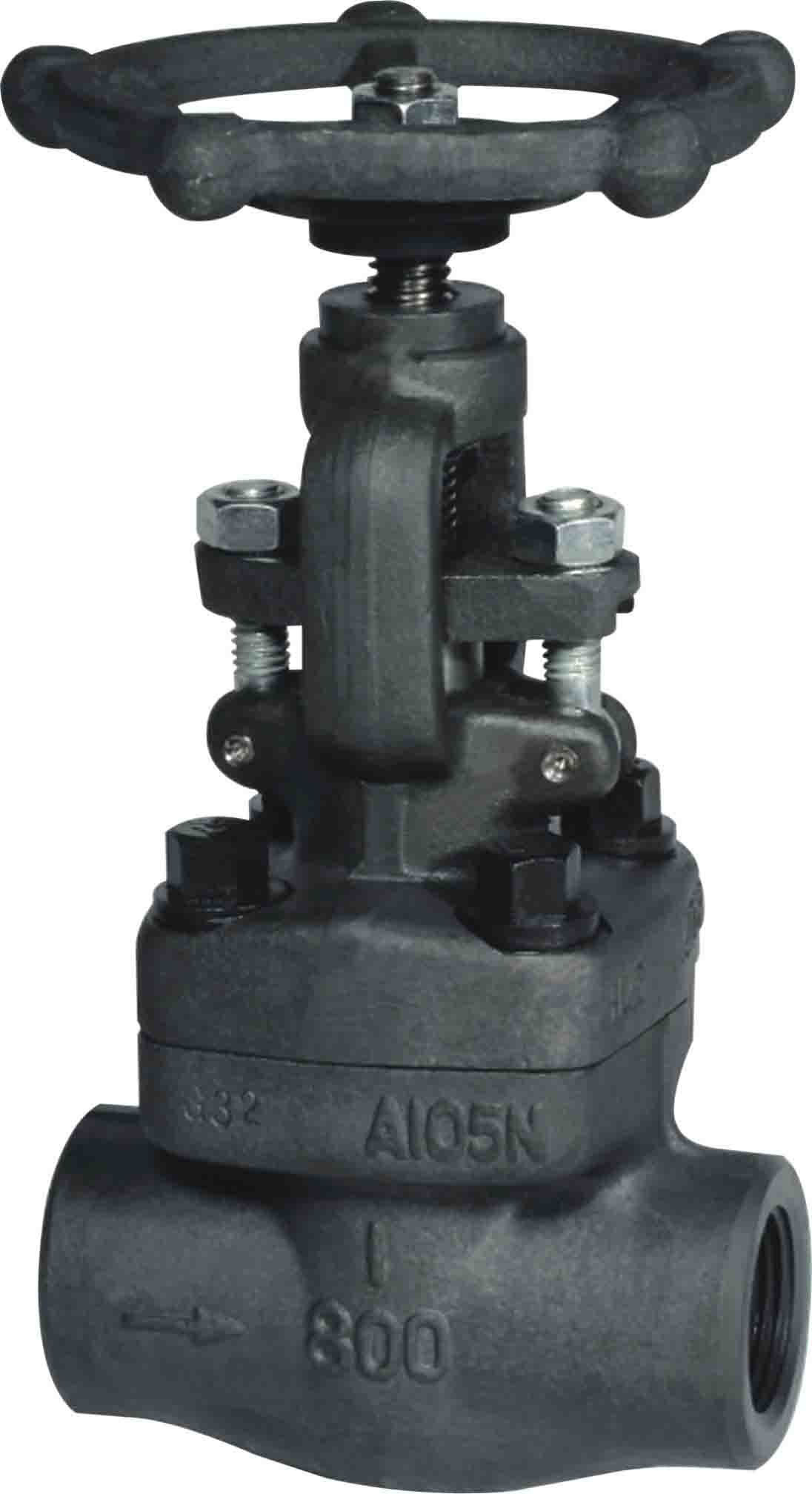

| Forged steel globe valve |
| |
 |
Content: |
|
|
Key Specifications/Special Features:
1)Design and manufacture conform to: API, ANSI, JIS, DIN,JB.
2)Test and inspection conform to:API598,GB/T13927,JB/T9092
3)Pressure: from ANSI class 150 to 2500 (PN1.6 - 42MPa)
4)Structure features: Bolted bonnet, welted bonnet, pressure seal bonnet
5)Connection ends conform to:
Butt-welded ends dimension conform to ANSI B16.11; JB/T1751
Flanged ends conform to ANSI B16.5; JB79
Screw ends dimension conform to ANSI B1.20.1; JB/T7306
Socket welded ends dimension conform to ANSI B16.11; JB/T1751
6)Materials conform to ANIS/ASTM
7)Main materials: A105; LF2; F5; F11; F22; 304(L); 316(L); F304 (L); F316(L); F347; F321; F91; Monel; 20Alloy
|
|
|
| |
