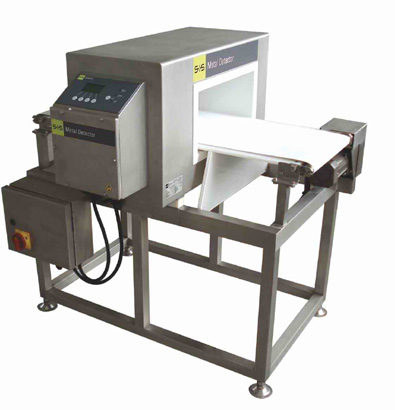

| Metal Detector for Industry GS-400A |
| |
 |
Content: |
|
|
GS-400A
FEATURES
1.The detecting head made in Germany ,Hi sensitive and stability.
2.Intelligent product study mode, can fit for more types of product.
3.Detecting sensitivity and phase angle dividual adjustment,two frequency optional.
4.Use LCD display and touch-key intergrated panel,friendly interface and easy to operation.
5.Based on digital signal processing technology ,Hi accuracy detection.
6.IP65 product degree and strong stainless steel frame.
PURPOSE
Designed for food industrial and pharmaceutical industrial use.
Also can fit for detecting the chemical products, rubber products.
SPECIFICATIONS
Model GS-400A(100mm)
Detection Method Balanced Coil
Detection Ability Fe¢0.63mm SUS¢1.1mm Non-Fe¢0.69mm
Detection Adjustment Sensitive(1%-100%) Phase Angle(0˘X-180˘X)Adjustable
Tunnel Width 400mm
Alarm Method Buzzer LED
Belt Speed 18-36m/minĦ]AdjustableĦ^
Power Source AC110V/220V 50-60HZ
Rated Output Appr.140W
Dimension 1120mm(L)*865mm(W)*1031mm(H)
Weight Appr.200Kg
GS-400A SERIES
GS Model/Basic Sensitivity Fe SUS Non-Fe
GS-400A/100mm ¢0.63mm ¢1.1mm ¢0.69mm
GS-400A/125mm ¢0.73mm ¢1.3mm ¢0.8mm
GS-400A/150mm ¢0.83mm ¢1.4mm ¢0.91mm
GS-400A/200mm ¢1.03mm ¢1.6mm ¢1.13mm
The specification is under standard test condition. The sensitivity depends on the
working condition. We have no responsibility that metal chips come out after detecting
under non-standard condition.
|
|
|
| |
