| SGD-980 Fancy yarn crochet machine |
| |
 |
Content: |
|
|
Application£º

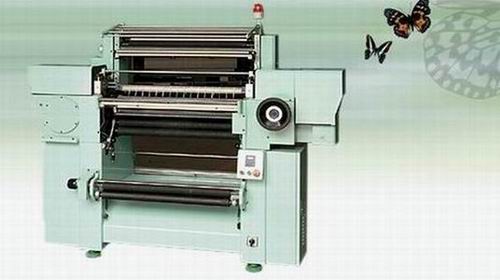

:: SGD-980 Model is a high Speed fancy Yarn crocket Machine. The machine first knits cloth with warp and weft yarn, then cuts the warp yarn to form the final yarn. Otherwise it knits warp and weft yarn to straightly kit belt yarn. SGD-980 machine is suitable to knit various kind of yarns, both natural fibers(wool, silk, cotton, linen, etc.) and synthetic fibers (polyester, acrylic etc.) This entire material can be dyed before or after knitting, in accordance with its mattress. The finished yarn is of flat shape.
:: SGD-980 Model is a high Speed fancy Yarn crocket Machine controls the device by changing inlay methods to produce all king of various pattern yarns. The machine speed is controlled by a frequency converter, starting at slow speed with stepless changes, fast breaking to low speed according to meet the test production demand. The machine is divided into three main sections.
Main technology parameters£º
::Operational breadth: 762mm(30 inch)
::Gauge Needles Per inch: 15, 18, 20(according to customer need)
::Weft Needle Plates: 2 sets
::Stitch Density: 5-20S/cm
::Link Chain: 12-50 sections
::Main Shaft Speed: Max. 1500r/min
::The Girth of Rack Frame: 170cm
::Whole Machine Power: 1.5kw
::No. of Yarn Bobbin: 520 pieces
::Seat Distance of yarn Bobbin: 200mm
::Main Machine(L x W x H): 1750 x 1950 x 1750mm
::Winding Section(L x W x H): 3000 x 2800 x 2400mm
::Yarn Frame(L x W x H): 4200 x 1880 x 2750mm |
|
|
| |
