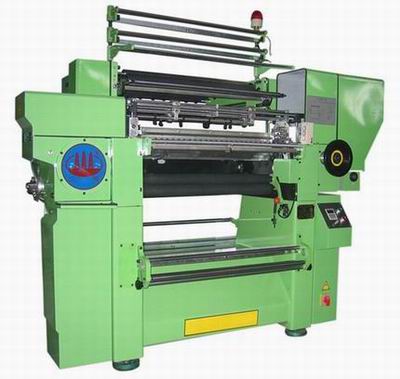

| SGD-260 Lace&Band crochet machine |
| |
 |
Content: |
|
|
Application£º
:: SGD-260 machine can manufacture laces, elastic and non-elastic bands, Rubber band,medical bandages and fancy lace. The product range can be used in clothes, shoe lace, and medicine.
:: Gauges come into 15, 18 and 20 or according to customer's request.Automatic lubrication for link chain system allows the machine to run quietly and smoothly at high speed.
Main technology parameters£º
::technical data:
::Operation breadth: 762mm(30inch)
::gauge: 15, 18, 20
::Weft bars: 3or6 bars
::Standard equipment:
::control device: 1 set
::operating motor(1.5hp): 1 unit
::rubber feeder system: 2 set
::width-wise device(260mm): 1 set
::standard accessories:
::bearded needle(G2): 400pcs
::weft guide tubes: 100pcs
::tube for width bandage: 10pcs
::block needle: 5pcs
::dropper: 400pcs
::tool: 1set/3set
::creel for 260 bobbins(max.#20cm): 1 set
::beam holder: 1 set
::dimensions and weights:
::net weight of machine: 750kg
::net weight of creel: 235KG
::crate of machine: 2800 x 1240 x 1900 mm |
|
|
| |
