| SGD168 Computerized spooler machine |
| |
 |
Content: |
|
|
Application£º

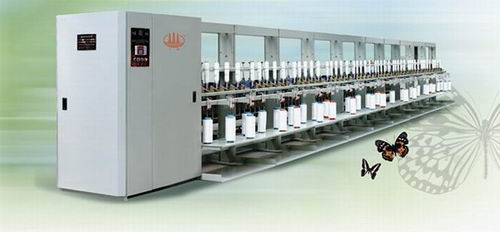

:: SGD168 computerized spooler
:: The fore equipment of two-for-one twister for filament, which can wind different forms Semifinished yarn into double-cone bobbin yarn.
Main technology parameters£º
::Number of spindles: 50-100 adjustable
::Winding speed: max 700m/min
::Winding bobbin type: ¦Õ42 x 270mm
::Volume weight: 1kg
::System of motor: round chain
::System of come and back: rounding chart
::Main motor: y90s-6-0.75kw
::Traverse motor: y100L2-4-(60spindle 3kw,120spindle 7.5kw)
::Products: polyester, filament yarn,cotton yarn
::winding type: A: warp wind, B: weft wind, C: compound type wind, D: built-up type wind
::Size: L14500 x W1400 x H1850 mm
::Weight: about 2000kg |
|
|
| |
