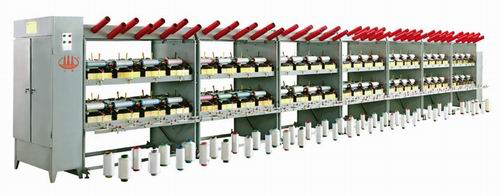

| SGD280-A/B High speed rewinding machine |
| |
 |
Content: |
|
|
Application£º
:: It is practical one which is used plastic spear parts looks better-construction and shortcut; can be used r air-jet and water-jet.
Main technology parameters£º
::Type: two sides and layers (A), one sides and two layers (B)
::Applied winding bobbin: L220, L280
::Range of yarn using: cotton, man made poly, poly etc
::Number of spindles: 96, increase or decrease according to 16 spindles (A);
----------- 48, increase or decrease according to 8 spindles (B)
::Max. speed: 400m/min
::Style of wind: double
::Eclectic power: 1.5kW x 4 machine (A); 1.5kW x 2 machine (B)
::Size: 96- spindle, L11050 x W900 x H1850mm
::Weight: about 2500kg |
|
|
| |
