| Plastic Pallet Welding Machine |
| |
 |
Content: |
|
|

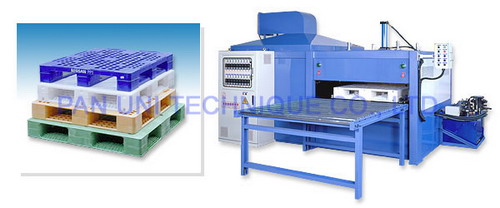

The machine is designed for welding large-sized PP pallets. It is driven by oil pressure and air pressure. The pallet welded by the machine is against striking and pulling.
Features:
1. The templates are driven by four chromate treated steel rods and sleeve bearings which run smooth and precise
2. The specially designed thermal mould makes welding beautiful and durable.
3. It is built thermostatic system with error 0.5oC
4. It is assembled with parts processed by CNC machine and both the horizontal and vertical can meet demands of high precision.
5. Automatic smoke collection installation.
Type : PU-MH1600P
Dimension : L4310 x W2500 x H2620 m/m
Weight : Main machine 4500 kg, Feeder 500kg
Power : 33KW . 220 / 380V x 3 . 50 / 60HZ
Air Pressure : 5KG/ cm2
Capacity : 30~50 sec / 1 MOLD
Application : Welding for PP Pallet Ranging from
1M x 1M to 2M x 2M
|
|
|
| |
