Subject: |
|
 |
| Worm Gearboxes |
| |
 |
Content: |
|
|

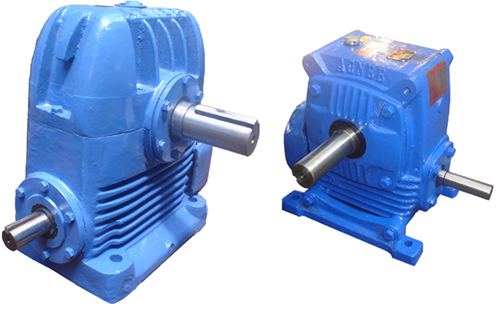

The AGNEE Worm Speed Reducers have Cast Iron Gear Case of streamlined design completely air tight, dust proof and capable of being installed in open without any cover. Agnee Transmission focused on manufacturing and wholesale supplying of Industrial Gearboxes. The Worm Shaft is made of Alloy Steel, duly hardened, tempered and ground. The Worm Wheel is made of Chill Cast Phosphorous Bronze and teeth accurately Generated on Gear Hobbing Machines. They are supported on Extra Heavy Duty Taper Roller anti friction Bearings of ample margin of safety to allow adequate journals as well as thrust loads. Lubrication is effected by splash of oil from the sump. Thus, no special care is required except for occasional oil topping to the required level. Air cooling is affected by means of standard polypropylene or metal fans. Apart from standard range, Gear Boxes are also tailor made to suit individual requirement or as per specifications provided. They are available in:
Vast range of Models suit every individual's requirement
Some Models like C.D. 50, 60, 75, 85, 100 mm, Ratio 30:1 or 40:1 are usually available Ex-stock or on short notice
Center Distances from 40 mm to 400 mm
In Single or Double Stage Reductions
Ratios from 5:1 to 4900:1
Also made as per customer's specifications, Drawing, requirements
Overhauling of Old Gear Boxes also undertaken, Early delivery schedules
|
|
|
| |
