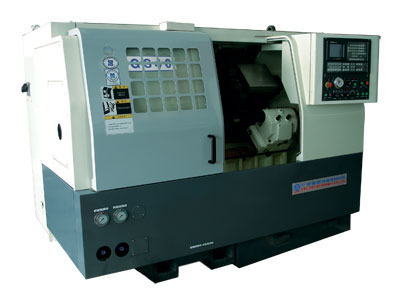

| CNC Lathe (GS40) |
| |
 |
Content: |
|
|
These series lathes are high precision CNC machines with good performance-price ratio. The high grade cast iron bed, slant rails and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. The machines are equipped with GSK980TD turning CNC system.
The machines, with a new appearance, easy-operated panel and full enclosed protection, are suitable for finishing or semi-finishing medium or small type workpieces.
1. Max. Swing Dia. (mm)?00
2. Max. Manufacturing Dia. (mm)?85
3. Max. Turning length (mm)400
4. Max. Bar Dia. (mm)?2
5. Hydraulic chuck Dia. (mm)?65
6. Type of spindle nose A2-5
7. Spindle bore Dia. (mm)?7
8. Spindle speed (r / min)70-3000
9. Main motor power(kW)7. 5
10. Slant angle(DEG)45 degree
11. Travel(mm)X 165 Z 410
12. Rapid traverse speed (m / min)X 12 Z 16
13. Servo motor torque (Nm)X 11 Z 20
14. Number of tools 8 / 12 (option)
15. Tool size (mm) Turning 20x20 Boring ?2
16. Sleeve (mm)Dia. ?0 Travel 80
17. Sleeve taper (MT)4
18. Power (kVA)35
19. Dimension (LxWxH) (mm)2540x1670x1660
20. Net weight (kg)3000
21. CNC system GSK980TD / DA98 |
|
|
| |
