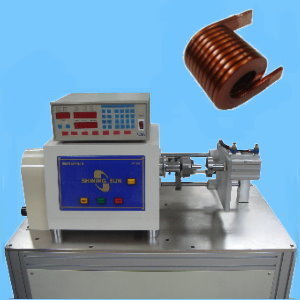

| SW-202SQ Flat Wire Coil Winding Machine (Small) |
| |
 |
Content: |
|
|
SPECIFICATION:
POWER: AC110V / 220V 50 / 60 HZ
Main Motor: Servo Motor(1 Hp)
R.P.M.: 50 r.p.m. max
Memory Capa.: 0~999 steps
Pitch: 0.001-9.999mm
Wire Size: thickness:3.5 mm
width:7~8 mm
Air Pressure: 6 kg/cm2
Spread Motor: Stepping Motor
Spread Range: 100mm max
WEIGHT: 150 Kg
DIMENSION: 1150(W)*850(L)*1500(H)mm
|
|
|
| |
