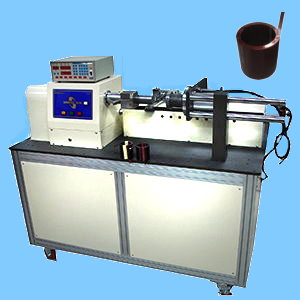

| SW-202LQ Flat Wire Coil Winding Machine(Large) |
| |
 |
Content: |
|
|
SPECIFICATION:
POWER: AC 110/220 V 50 / 60 HZ
Main Motor: Servo Motor 3000W
Memory Capa.: 0~999 steps
Pitch: 0.001-9.999mm
Wire Size: 120 mm2
Air Pressure: 6 kg/cm2
Spread Motor: Stepping Motor
Spread Range: 500mm
Speed: 60 r.p.m.
Winding Direction: CW/CCW
Winding Diameter: 600 mm
WEIGHT: 250 Kg
DIMENSION: 1600(W)*1000(L)*1430(H)mm
|
|
|
| |
