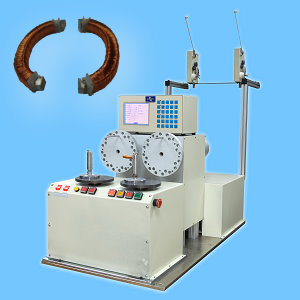

| SW-209 Clamp Coil Winding Machine |
| |
 |
Content: |
|
|
SPECIFICATION:
POWER: AC220V 50 / 60 HZ
MAIN MOTOR: 400W Servo Motor
SPREAD MOTOR: 400W Servo Motor
ROTATOR SHAFT MOTOR: 400W Servo Motor
CONTROLLER: Three spindle servo control system
R.P.M : 1500
SPREAD RANGE : 85mm Max
PITCH: 0~9.999mm
ROTATOR ANGLE: 0~ˇÓ360˘X
DIMENSION: 530(W)*1450(L)*1090(H)mm
FUNCTIONˇG
1.Setting three spindle of motor action at the same time.
2.Make straight & arc shape of winding.
3.Suitable for plenty section of irregular shape
|
|
|
| |
