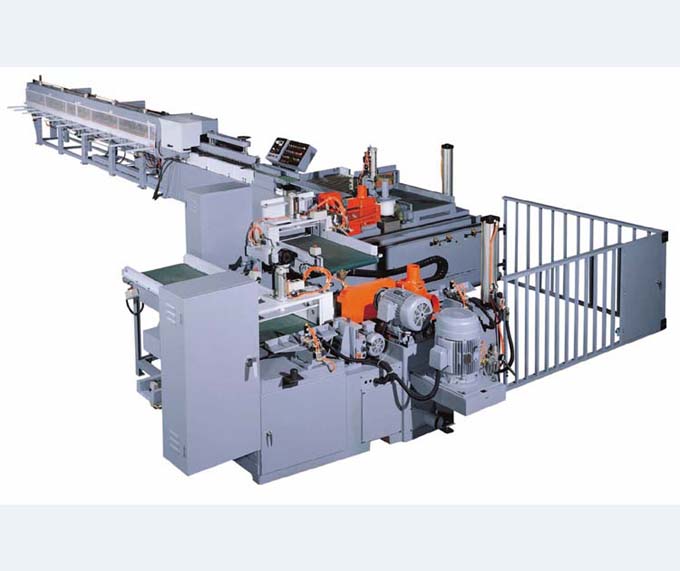

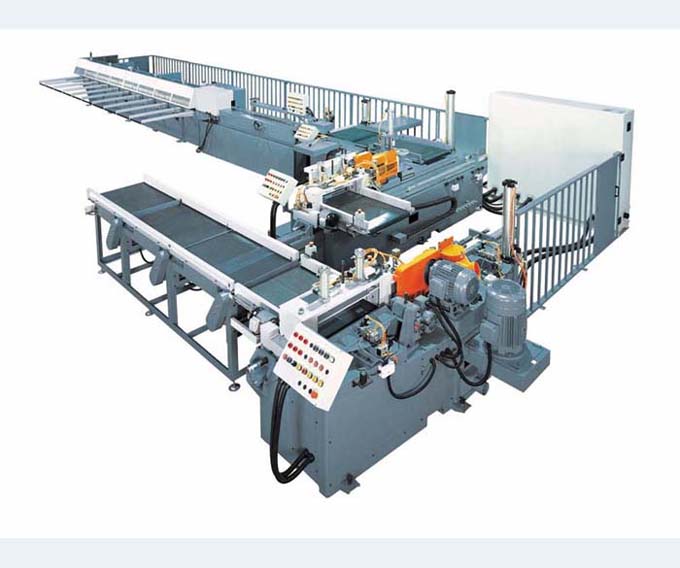

Product Description:
1.Automatic inital infeeding of workpieces. 2.Auto feed table. 3.F-C05 right finger shaper performs scoring,trimming, and shaper on right end of workpiece. 4.Workpieces automatically travel into left finger shaper. 5.F-C06 left finger shaper performs scoring,trimming, shaper and gluing on left end of workpiece. 6.Workpieces travel into the standby conveyor, then feed forward into automatic feeding table. 7.Workpiece feed one by one automatically. 8.Work pieces automatically feed to pre-press assemble stand. 9.Workpieces travel forward for cutting-to-length. 10.Finger assembly
Product Description:
1.Automatic inital infeeding of workpieces. 2.Auto feed table. 3.F-C05 right finger shaper performs scoring,trimming, and shaper on right end of workpiece. 4.Workpieces automatically travel into left finger shaper. 5.F-C06 left finger shaper performs scoring,trimming,shaper and gluing on left end of workpiece. 6.Workpieces travel into the standby conveyor, then feed forward into automatic feeding table. 7.Workpiece feed one by one automatically. 8.Work pieces automatically feed to pre-press assemble stand. 9.Workpieces travel forward for cutting-to-length. 10.Finger assembly

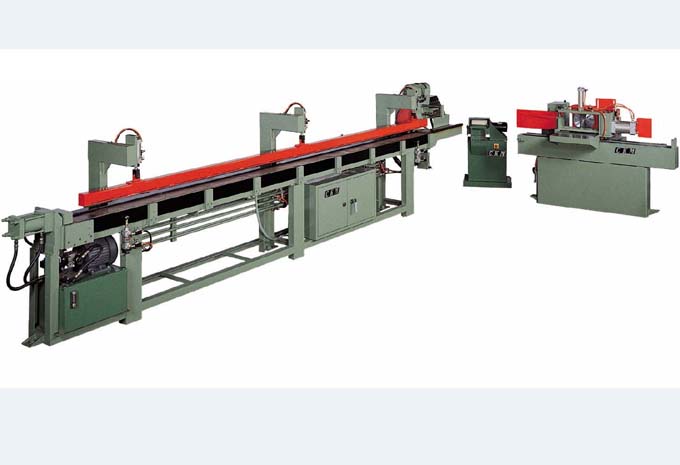

Product Description:
1.Material loaded on table. Material quality may be inspected at this time. 2.Perform trimming and shaping operations on left end of workpiece. 3.The operator change the material to right end for trimming and shaping operations. 4.After both ends of tenon have been cut, place the workpieces onto the table. 5.Performing hand gluing operations on F-G01. 6.The operator feeds workpiece to finger assembler(F-A06) for jointing operations. 7.Cut the workpiece to a desired length. 8.Finger assembler performs jointing jobs. 9.Final products cutfeed and stay for a while for drying.
Product Description:
The GEETECH 6" Jointer CT-150C is designed and manufactured to meet the demands of smooth, precise and trouble-free surfacing operations. It provides a cutting capacity of 6" width and 1/2" depth, with a large rabbeting capacity of 1/2" x 6". The entire unit is precision built to produce fine surface cutting results and comes equipped with a cutter head guard which gives full coverage of the cutter head during cutting operations. Its compact construction means it is very maneuverable, making it ideal for light to medium duty surfacing operations.
Product Description:
The new CT-150E 6" Jointer from GEETECH integrates many fine features for superior performance. The unit heavy cutting and rabbeting capacity up to 6" in width, and 1/2" depth. The machine is employed with a key switch to prevent unauthorized use. An adjustable outfeed table allows for more convenient knife setting. The cutter head runs at 5000 RPM, with 15000 cuts per minute, creating an extremely fine cut surface. A swing type cutter head guard provides full coverage of the cutter head knives before, during and after cutting operations. A 4" dust chute is furnished as standard equipment. The
Product Description:
The GEETECH 8" Jointer is designed and engineered for heavy industrial application and accurate production work. This machine will provide years of trouble free service as any areas subject to wear are completely replaceable. Features include: a completely enclosed stand encasing the motor, belt, pulleys and electrics; dynamically balanced 3-knife cutter knives, a 36" (915mm) x 9" (228mm) dual tilt fence with right and left 45o and 90o positive stops and a massive 66" (1676mm) x 9" (228mm) bed. This machine is especially suitable for use where accuracy, speed, ease of operation and low, easy m
Product Description:
The CT-38 15" planer from GEETECH is compactly constructed and economically priced, yet it offers exceptionally high quality and reliable planning performances. The unit can cut stock up to 15" wide and from 1/4" to 6" thick, with a minimum stock length of just 7 1/2". Anti-kickback fingers are mounted in front of the infeed roller to provide maximum safety for the operator. The 2-speed gear box provides a powerful and positive stock feeding effect. The whole unit may be easily moved by means of the handles at the front and rear of the table.
