Product Description:
PVC PE XLPE LSHF Electric wire & cable high-speed extrusion. Machine included with dual cone pay off or bobbin rotating pay off, extruder, double layers cooling trough, dual wheel capstan, horizontal accumulator, single spooler or dual spooler with auto-bobbin change. PLC +high technical industrial computer control. A 40-50-60mm stripping extruder is available for color stripping or skin coating. Line equipped with advance accessories, production speed up to 1000mpm max.
Product Description:
Double twist type twisting without back twist, suitable for 20-40 electronic wire and flexible multi fine wire high speed twisting. 7B copper wire stranding and 2-4 cores PVC wire twisting are available by equipped with different type of pay off stands.
Product Description:
Drum twist type for 25-50-100P telephone cable unit stranding. Line equipped with 25-50-100pcs of 500mm stationary pay off stands, rotating capstan and rotating take up rotor. Line also available for steel wire armouring by equipped with a cable core pay off rotor, rotating haul off caterpillar, armour wires forming die plate and a lot of steel wire pay off flyers.
Product Description:
Dual cone type wire pay off with non-stop bobbin change for high speed extrusion line. Bobbin load on portable trolleys with hydraulic lifter, wire free pulling out through a free rotating ring or motorize rotating ring in front of bobbin flange.
Product Description:
Auto-coiling with full automatic MMI+PLC computer operation to make wire rolls with 100-500M unit length. Machine tandem with extrusion line for PVC wire extrusion and continuous winding into rigid rolls, or independent operation with motorize pay off stand and wire accumulator.
Product Description:

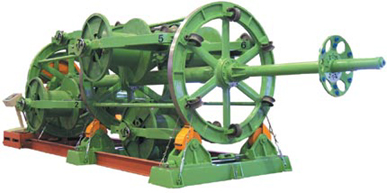

Planetary type stranding with 100% back twist, for 4-6 cores round power cables and telephone cables laying up (100p x 8cores=800p, 200p x 8cores=1600p, 300p x 6cores=1800p) . Main rotor and haul off caterpillar are driven by individual motors. MMI+PLC computer control of speed synchronization and laying pitch pre-setting.
Product Description:

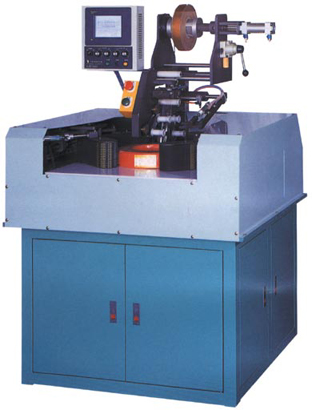

Portable type auto-wrapping of wire rolls with P.P film or PE tape and auto-label sticking. MMI+PLC control of roll sizes/length/over lap width and wrapping speed. Use hot key operate for pre-set of different rolls.
Product Description:
Tandem type dual spooler for high speed take up of wire extrusion machine. MMI+PLC computer control of speed synchronization¡Nnon-stop auto-bobbin change and auto bobbin loading operation. A horizontal type speed detecting accumulator is attached for speed control.
Product Description:

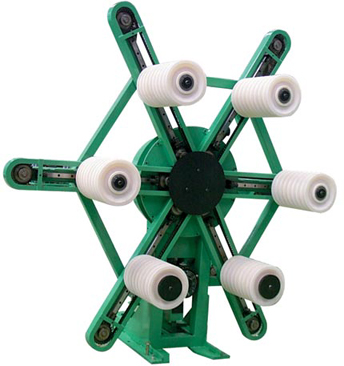

Radial expansion type, cable wind around the circular of wheel group, radial position detecting the varying of line speed obtains pay off & take-up with speed synchronization and non-stop of drum change. Suitable for large cables extrusion or rewinding.
Product Description:

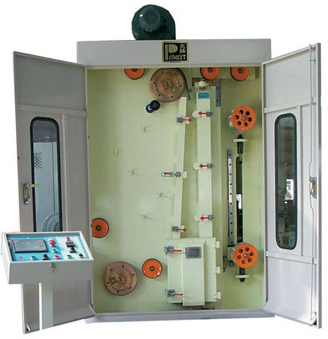

AC-single phase high current resistance directly wire contact heating type with three contacting sheaves. Online copper conductor continuous annealing for medium wire drawing machine. MMI+PLC computer control, zero hard starting and keeps most smooth and constant wire elongation during whole range of drawing speed as well as whole range of wire diameter.
