Product Description:

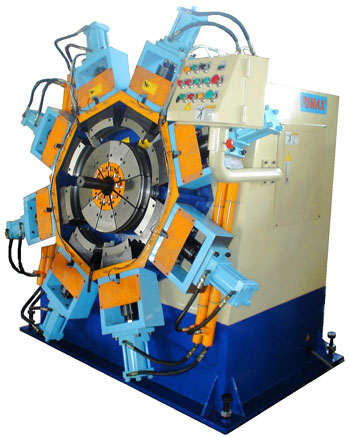

After JTMCO presented Single-wall rim automatic punching machine JTMCO keep continue presenting the Double-wall rim automatic punching machine to put in use to the production line to raise the capacity triple. Use the two sides¡Šedge turning machine could raise the production capacity also saving the man power cost reduce production cost and bring enterprise more competition capacity.
Product Description:
Motorcycle Rim size 17"~21" Bike Rim size 16"~28" Power for motorcycle 14HP Power for Bike 11.5HP Motorcycle rim cap Bike rim cap 1200pcs/8hrs Control Electricity Size L200 X W200 X H200 cm Weight 1050 KGS

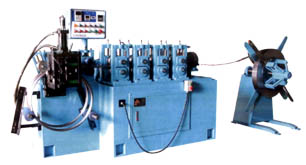

Product Description:
Horse Power 5HP Hydralic Power 3HP Control Electricity Capacity 0 ~ 6 M Size L180 X W143 X H158 cm Weight 1800 KGS Mudguard Size 16"~28" Material of mudguard Steel, Stainless

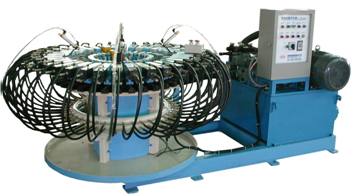

Product Description:
1.Simple structure and easy to operate. Only adjust position to punching different size and hole numbers. 2.For the same holes numbers ,only takes 3 minutes to adjust size by motor, then press a switch, and the punching dies in-and-out in chorus. Easy, fast and technical personnel. 3.For the different holes numbers, only takes 90 minutes per 1 person to loose punching seats nuts adjusting hole numbers. 4.Punching dies can be adjusted deep or shallow. 5.Punching shaft is heat-treated and ground. two bushes inside the pin seats to raise punching precision. 6.10 HP motor. 7.PLC control.

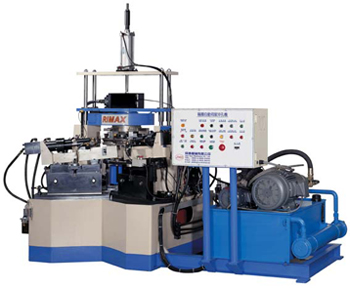

Product Description:
Features : Make dimpled holes by punching, suitadle for both steel and aluminum rims, Easy operation and specification changing.
Specification : 1.Disc : Driving by servo 2.Holes punching : 4 spoke holes and one valve hole Each time. 3.Method of punching : 2 sections, firstly make the dimpled shape, then punch holes. 4.Punching times for rim : 9 times, controlled by Servo motor. 5.Hydraulic unit : 15 HP 6.PLC control.

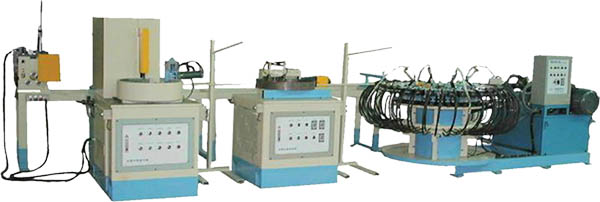

Product Description:
Motorcycle Rim size: 17"~21" Bike Rim size: 20"~28" Power for motorcycle: 56 1/4HP Power for Bike: 46HP Bike rim cap: 1200pcs/8hrs Control: PLC Size: L780 X W220 X H210 cm Weight: 3500 KGS
Product Description:
Following single layer of wheel rim full-automatic holes washing machine, meet that spring the double-deck wheel rim wash the hole machine automatically to is it is it succeed in to research and develop to take the lead in moreover, apply to production . The line, make the whole produce and can improve triple , and then match the new-type bilateral synchronous aluminium and enclose the machine by the car , not only improve production efficiency by a wide margin , combine Save the manpower costs, reduce the production cost, bring higher competitive power to enterprises.
