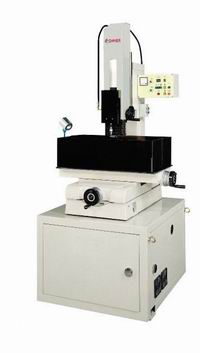

Product Name: CNC drill EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
1.CNC type(X350mm Y250mm)
2.Compact and economic design
3.Automatic electrode change
4.Reloading electrode pipeautomatically to improve productivity
Product List     Company Profile

Select
Product Name: CNC drill EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
1.Super-large type(X600mm Y800mm)
2.Suitable for large-sized workpiece
Product List     Company Profile

Select
Product Name: CNC drill EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model Unit CMH32A
Max. workpiece size(W¡ÑD¡ÑH) mm/inch 800¡Ñ450¡Ñ400 / 31.4¡Ñ17.7¡Ñ15.7
Max. workpiece weight kgs/lbs 100 / 220.4
Table travel(X,Y) mm/inch 350¡Ñ250 / 13.8¡Ñ9.8
Ram travel(Z1) mm/inch 340 / 13.3
Ram travel(Z2) mm/inch 200 / 7.9
Machine head movement mm/inch 150 / 5.9
Electrode pipe Diameter mm/inch ¡í0.2~¡í6.0(one unit/0.1)
Max. electrode pipe length mm/inch 400 / 15.7
Distance from table to bottom of guide mm/inch 5-400 / 0.2-15.7
Fluid capacity - 25 liter ¡Ñ2
Dielectric - Water
Outside dimensions(W¡ÑD¡ÑH) mm/inch 1380¡Ñ1110¡Ñ2360 / 54.3¡Ñ43.7¡Ñ92.9
Product List     Company Profile

Select

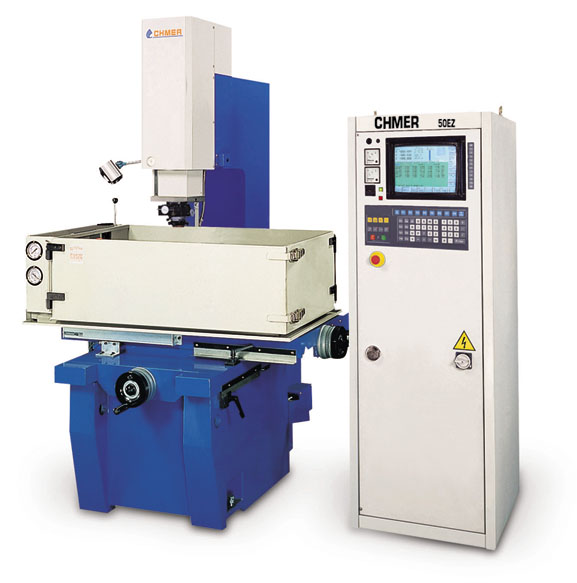

Product Name: EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
1.High performance AC servomotor is used on Z-axis eliminating the
replacing possibility of carbon brush.
2.Adjustable jumping distance and speed achieves rapid ram jumping
for high performance flushing at maximum speed 1.8m/min.
3.NC programmable Z-axis and U-V orbiter produce high
performance 3-axis CNC Orbital machining.
4.Unique user-friendly E code enables machine settings
programmable with Z-U-V possitions.
5.Auto programming by conversation automatically selects machining
parameter based on electrode size, material, depth and desired
surface finish from roughing to finial fini
Product List     Company Profile

Select

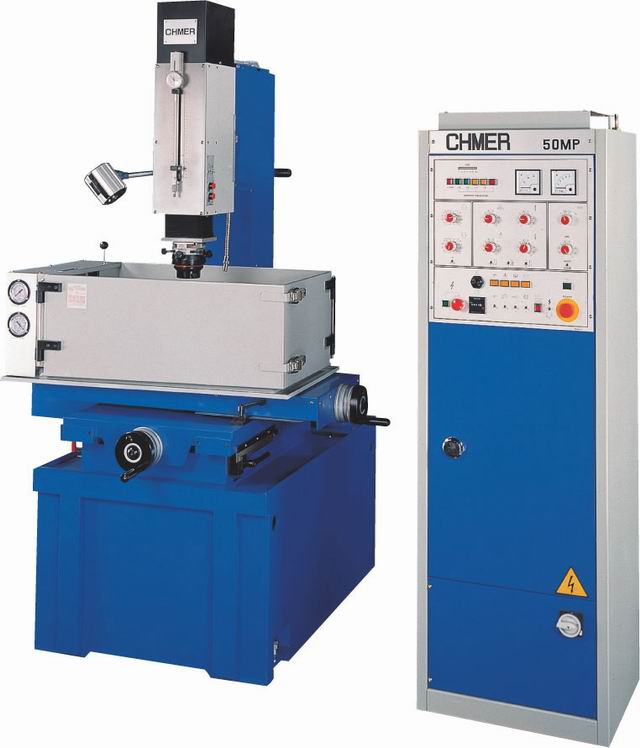

Product Name: EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model Unit CM240R
Work table size(W¡ÑD) mm/inch 500¡Ñ350 / 19.7¡Ñ13.8
Table travel(X,Y) mm/inch 300¡Ñ200 / 11.8¡Ñ7.9
Work tank(W¡ÑD¡ÑH) mm/inch 820¡Ñ500¡Ñ300 / 32.3¡Ñ19.7¡Ñ11.8
Ram servo travel(Z1) mm/inch 200 / 7.9
Work head travel(Z2) mm/inch 200(Manual) / 7.9
RAM platen to work table mm/inch 160-560 / 6.29-22.04
Max. electrode weight kg/lbs 60 / 132.3
Max. workpiece weight kg/lbs 500 / 1102.3
Outside dimensions(W¡ÑD¡ÑH) mm/inch 1300¡Ñ1300¡Ñ2220 / 51.2¡Ñ51.2¡Ñ87.4
Weight of machine unit kg/lbs 1000 / 2204.6
Product List     Company Profile

Select

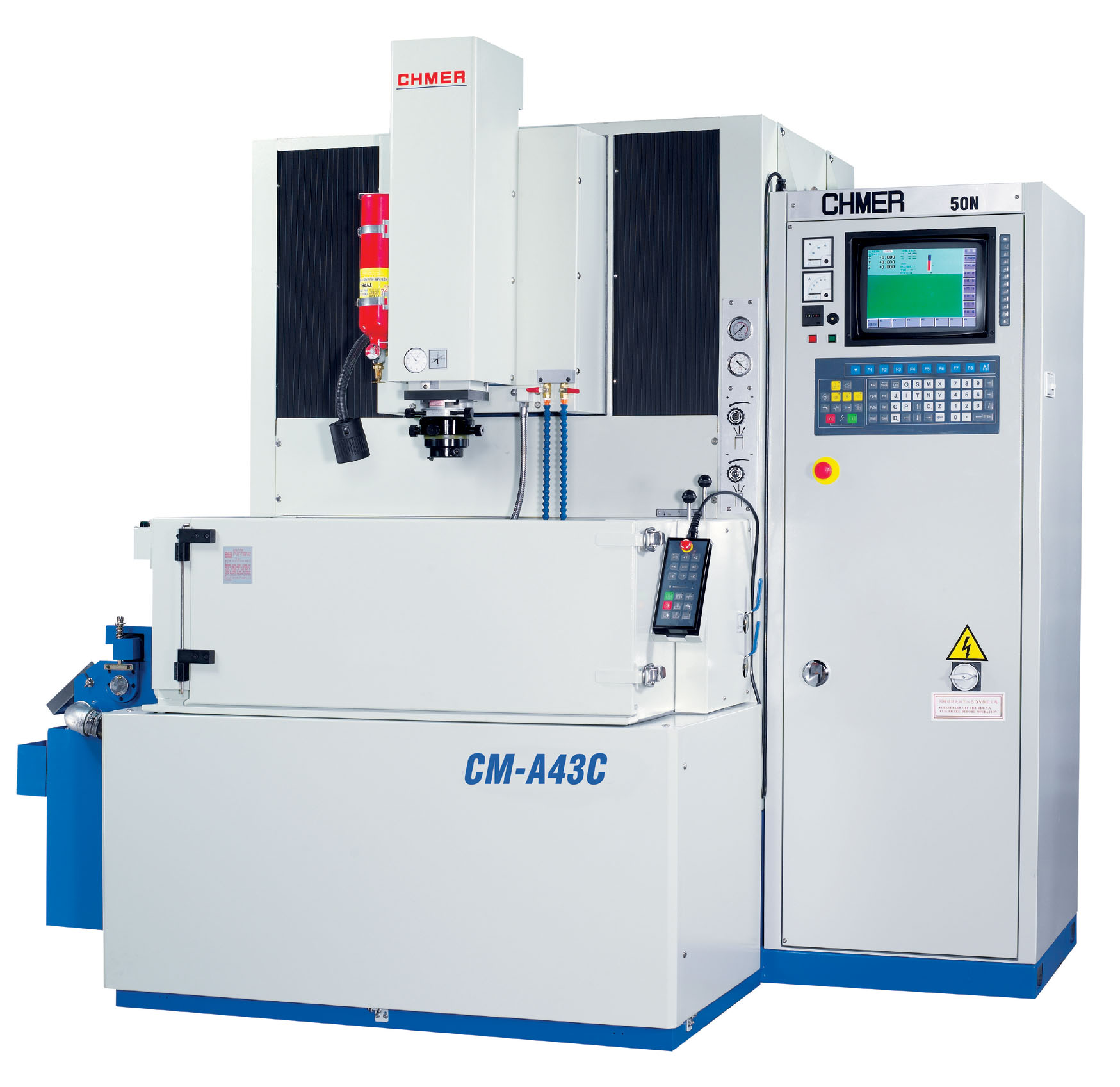

Product Name: CNC powder EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Product List     Company Profile

Select

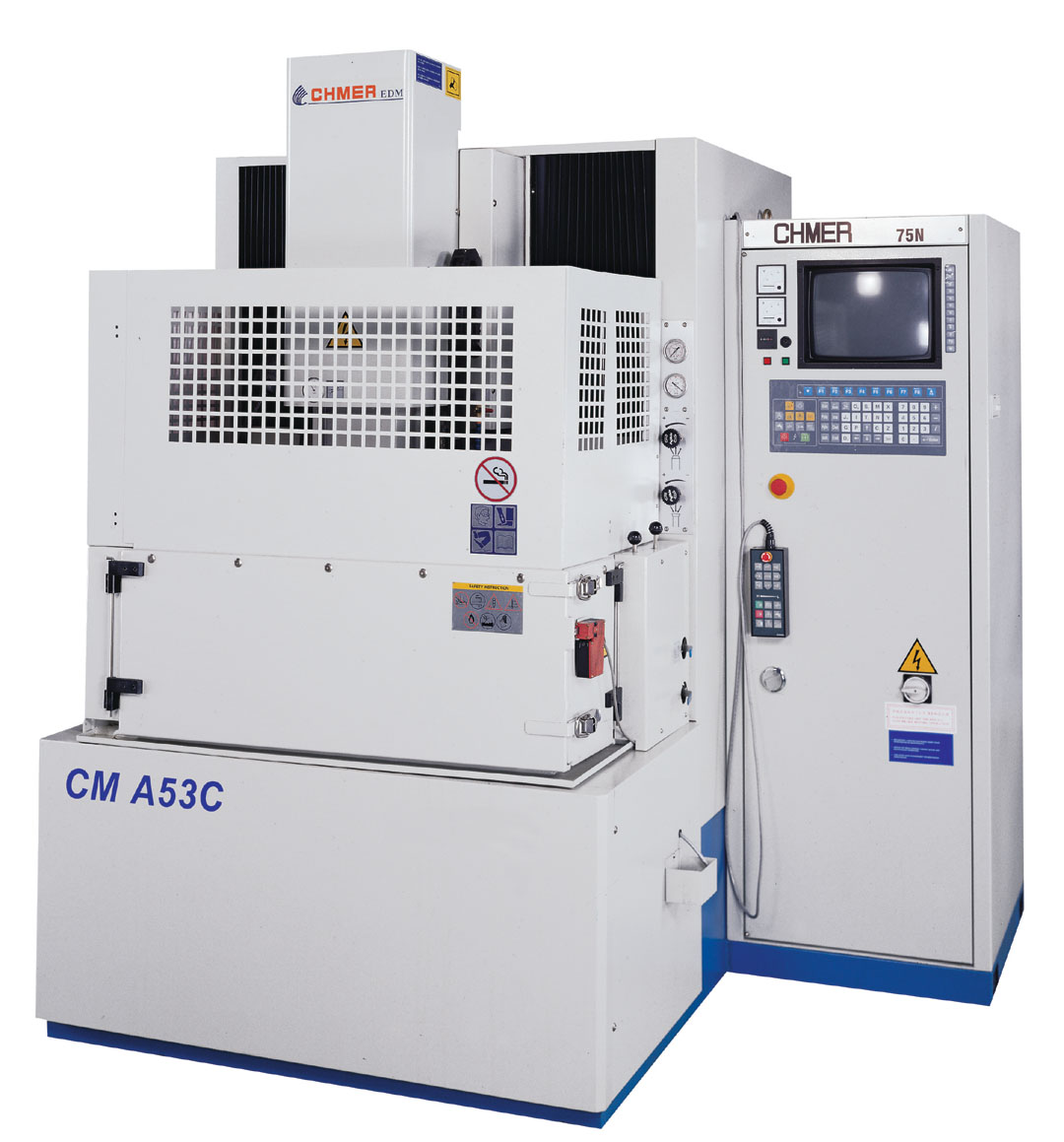

Product Name: CNC powder EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model Unit CM-A53CP
Table Size (W¡ÑD) mm 650¡Ñ400
Work Tank Size (W¡ÑD¡ÑH) mm 1100¡Ñ640¡Ñ400
Table Travel (X,Y) mm 500¡Ñ350
Ram Travel (Z1) mm 350
Distance from RAM Platen Work Table mm 300-650
Max. Electrode Weight kg 100
Max. Workpiece Weight kg 1000
Machine Weight kg 2200
Weight for Dielectric - DA53
Product List     Company Profile

Select
Product Name: wire EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model Unit CW-32CF/S
Axis travel (XxYxZ) mm 320x250x220
Auxiliary table travel (UxV) mm 60x60
Max. size of workpiece mm 800x560x220
Max. weigh of workpiece kg 300(F)/150(S)
XY feed rate mm Max. 800 mm/min
Axis drive system N/A AC servo motor
Max. wire feed rate mm 300/sec
Wire tension gf 400-2500
Taper angle mm ¡Ó20¢X/80mm(Wide angle taper nozzle)
Machine dimensions mm 1250x1500x2000
Machine Weight kg 2500
Product List     Company Profile

Select
Product Name: wire EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model Unit CW-422F/S
Axis Travel (X¡ÑY¡ÑZ) mm/inch 400¡Ñ250¡Ñ220 / 15.7¡Ñ9.8¡Ñ8.6
Auxiliary Table Travel (U¡ÑV) mm/inch 60¡Ñ60 / 2.4¡Ñ2.4
Max. Size of Workpiece mm/inch 800¡Ñ560¡Ñ215 / 31.5¡Ñ22.0¡Ñ8.5
Max. Weight of Workpiece kg/lb 350/770(F) / 250/550(S)
XY Feed Rate - Max. 800 mm/min. / Max. 31.5"/.
Axis Drive System - AC servo motor
Wire Diameter Range - ¡í0.15~¡í0.3mm / ¡í0.006"~¡í0.012"
Max. Wire Feed Rate - 300mm/sec. / 11.8"/sec.
Wire Tension gf 400-2500
Taper Angle mm/inch ¡Ó14.5¢X/80mm / ¡Ó14.5¢X/3.15"
(Wide angle taper nozzle, DA+DB=15mm)
Machine Weight kg/lb 2050 / 4510

Product List     Company Profile

Select
Product Name: wire EDM
Company: Ching Hung Machinery & Electric Industrial Co., Ltd.   [Taiwan]
Company Type: Manufacturer
Product Description:
Model Unit CW-532F/S
Axis Travel (X¡ÑY¡ÑZ) mm/inch 500¡Ñ300¡Ñ220 / 19.7¡Ñ11.8¡Ñ8.6
Auxiliary Table Travel (U¡ÑV) mm/inch 60¡Ñ60 / 2.4¡Ñ2.4
Max. Size of Workpiece mm/inch 900¡Ñ600¡Ñ215 / 35.4¡Ñ23.6¡Ñ8.5
Max. Weight of Workpiece kg/lb 450/990(F) / 300/660(S)
XY Feed Rate - Max. 800 mm/min. / Max. 31.5"/.
Axis Drive System - AC servo motor
Wire Diameter Range - ¡í0.15~¡í0.3mm / ¡í0.006"~¡í0.012"
Max. Wire Feed Rate - 300mm/sec. / 11.8"/sec.
Wire Tension gf 400-2500
Taper Angle mm/inch ¡Ó14.5¢X/80mm / ¡Ó14.5¢X/3.15"
(Wide angle taper nozzle, DA+DB=15mm)
Machine Weight kg/lb 3000 / 6600
Product List     Company Profile

Select
